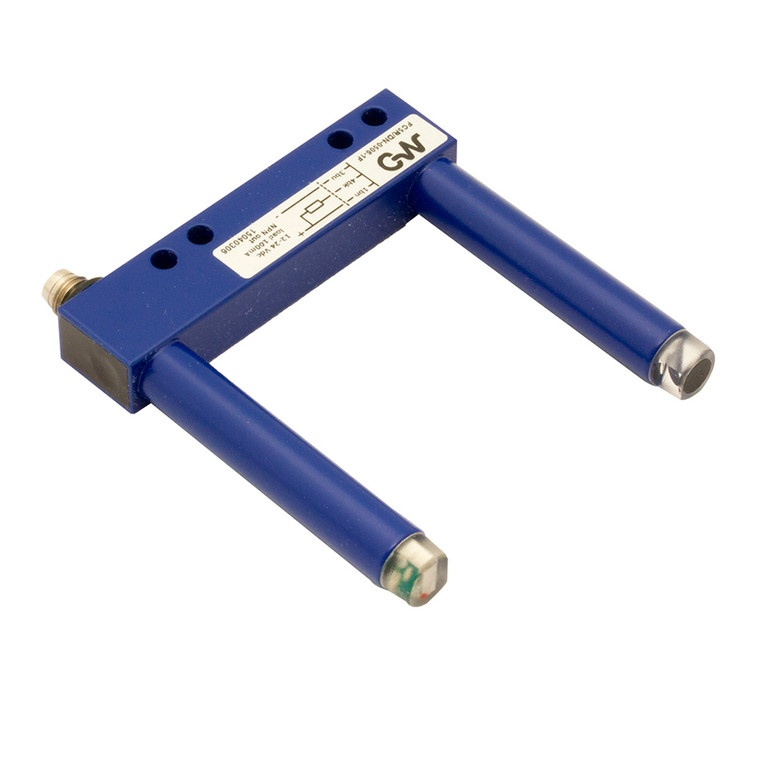

Datasensing FC5R/DP-0303-1F Sensors
Datasensing
$166.48
The Datasensing FC5R/DP-0303-1F Sensors are designed for precision and reliability, featuring a 30mm width and 40mm depth slot detection with a high-power RED LED emission. These sensors are equipped with a PNP-NO output type and an M8 connector, ensuring easy plug-and-play installation without the need for adjustments. With a minimum detectable object size of 0.8mm and a switching frequency of 4 KHz, they offer exceptional performance in various applications. The metal housing provides durability, while the LED indicator ensures high visibility. Operating within a temperature range of -10°C to +60°C, these sensors are protected against short circuits and reverse polarity, making them suitable for demanding environments. The painted aluminum housing and polyamide/glass active head material contribute to their robust construction, and they are CE and UL approved with IP67 mechanical protection. Ideal for environments with external light interference up to 5000lux (incandescent lamp) and 10000lux (sunlight), these sensors are a reliable choice for your sensing needs.
- Nominal sensing distance:
- 30mm
- minimum detectable object:
- 0,8mm
- Si:
- Yes
- Sensitivity adjustment:
- No
- Function Principle:
- Photoelectric slot
- Output type:
- PNP Don
- Output Function:
- Don
- Switching frequency:
- 4kHz
- Response time:
- 125µs
- Operating Voltage:
- 12...24VDC
- No-Load supply current:
- ? 20mA
- Load current:
- ?100mA
- Output voltage drop:
- ?1,5V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 142g
- Housing Material:
- Painted aluminium
- Connections:
- M8 plug 3pin
- Active Head Material:
- Polyamide/glass
- Operating temperature:
- - 10°C + 60°C
- Storage temperature:
- - 40°C + 80°C
- Width slot detection:
- 30mm
- Depth slot detection:
- 40mm
- Approvals:
- CE UL
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP67
- Operating Temperature:
- - 10°C + 60°C (Without freeze)
- Mechanical Protection:
- IP67
