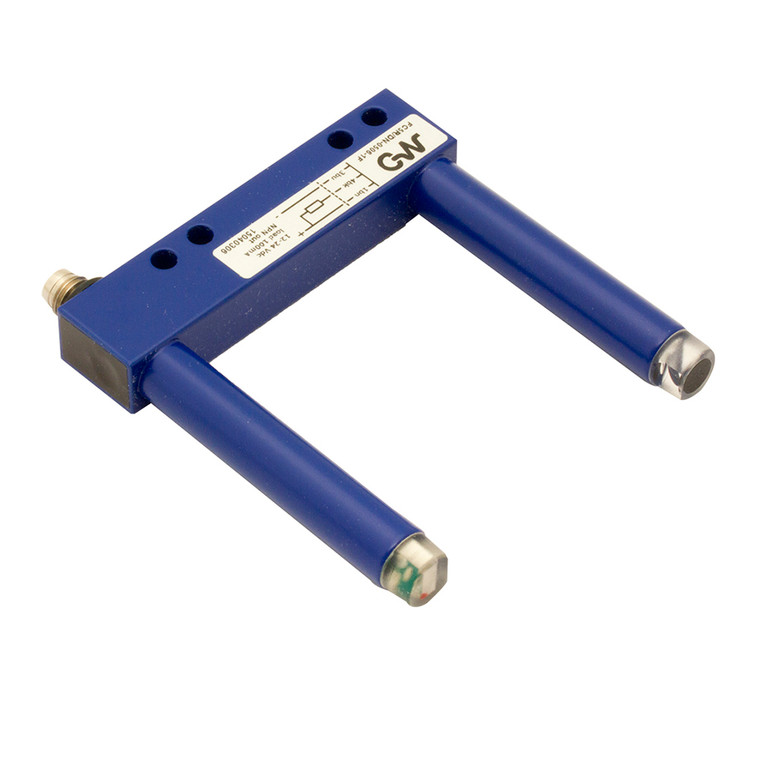

Datasensing FC5R/LP-0303-1F Sensors
Datasensing
$166.48
The Datasensing FC5R/LP-0303-1F Sensors are designed for precision and reliability, featuring a 30mm width and 40mm depth slot detection. Equipped with a high-power RED LED, these sensors offer exceptional visibility and performance, capable of detecting objects as small as 0.8mm. The robust metal housing ensures durability, while the M8 3-pin connector facilitates easy installation. With a switching frequency of 4 KHz and a response time of 125µs, these sensors are ideal for high-speed applications. Operating within a voltage range of 12 to 24VDC, they provide reliable performance with a no-load supply current of ? 20mA and a load current of ?100mA. The sensors are equipped with yellow LED indicators for status output, and feature short-circuit and reverse polarity protection. Designed to withstand external light interference up to 5000lux from incandescent lamps and 10000lux from sunlight, they are suitable for various environments. The painted aluminium housing and polyamide/glass active head material ensure a lightweight design at 66g, while maintaining a high degree of protection with an IP67 rating. These sensors are CE and UL approved, and comply with EMC compatibility standards EN 60947-5-2, making them a reliable choice for industrial applications.
- Nominal sensing distance:
- 30mm
- minimum detectable object:
- 0,8mm
- Si:
- Yes
- Sensitivity adjustment:
- No
- Function Principle:
- Photoelectric slot
- Output type:
- PNP Lon
- Output Function:
- Lon
- Switching frequency:
- 4kHz
- Response time:
- 125µs
- Operating Voltage:
- 12...24VDC
- No-Load supply current:
- ? 20mA
- Load current:
- ?100mA
- Output voltage drop:
- ?1,5V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 66g
- Housing Material:
- Painted aluminium
- Connections:
- M8 plug 3pin
- Active Head Material:
- Polyamide/glass
- Operating temperature:
- - 10°C + 60°C
- Storage temperature:
- - 40°C + 80°C
- Width slot detection:
- 30mm
- Depth slot detection:
- 40mm
- Approvals:
- CE UL
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP67
- Operating Temperature:
- - 10°C + 60°C (Without freeze)
- Mechanical Protection:
- IP67
