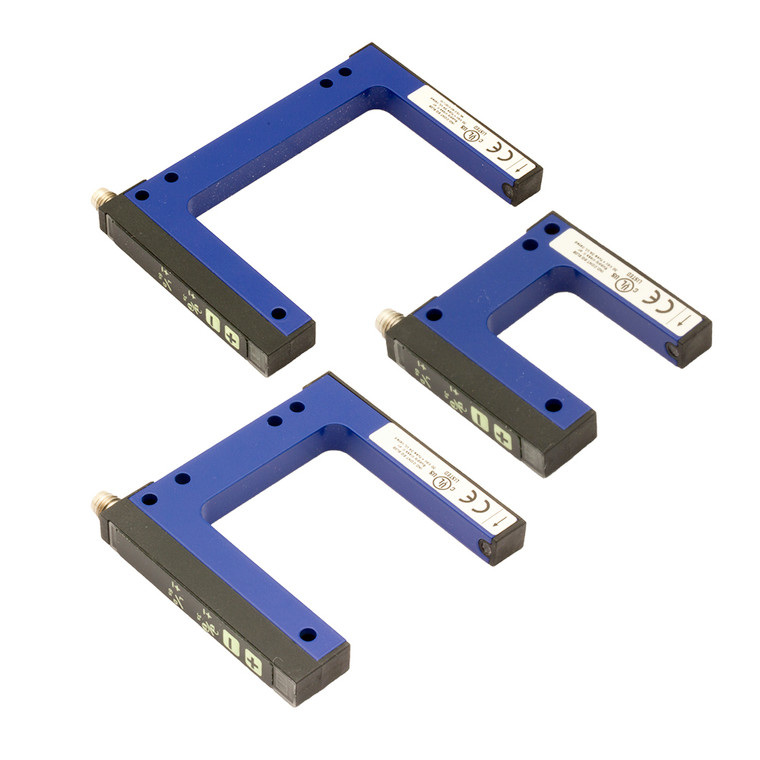

Datasensing FC6I/0B-0110-1F Sensors
Datasensing
$317.84
The Datasensing FC6I/0B-0110-1F Sensors are designed for precision and reliability, featuring a 15mm width and 95mm depth slot detection. These sensors offer simple and accurate manual adjustments using -/+ buttons, making them user-friendly and efficient. With infrared emission and a LASER emission class 1, they ensure high performance in various applications. The metal housing provides durability, while the light/dark switching is easily selectable by button. Capable of detecting minimum object sizes of 0.2mm, these sensors operate within a temperature range of -20 to +60 °C. They are equipped with M8 connectors (4 pins) supporting PNP/NPN, LO/DO configurations, and boast a high switching frequency of 10 kHz. Additional features include short-circuit and reverse polarity protection, LED indicators for status output and adjustment, and a robust painted aluminum housing. The sensors are CE and UL approved, ensuring compliance with industry standards. Ideal for environments with interference from external light, they can withstand up to 5000 lux from incandescent lamps and 10000 lux from sunlight. With a nominal sensing distance of 15mm and a response time of 50 µs, these sensors are perfect for high-speed and precise applications.
- Nominal sensing distance:
- 15mm
- minimum detectable object:
- 0.2mm
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Photoelectric slot
- Output type:
- NPN / PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 10kHz
- Response time:
- 50 µs
- Operating Voltage:
- 12...24VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?100mA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output), Red (adjustment or block keypad)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 90g
- Housing Material:
- Painted aluminium
- Connections:
- M8 plug 4pin
- Active Head Material:
- Polyamide/glass
- Operating temperature:
- - 20°C + 60°C
- Storage temperature:
- - 30°C + 80°C
- Width slot detection:
- 15mm
- Depth slot detection:
- 95mm
- Approvals:
- CE UL
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP65
- Operating Temperature:
- - 10°C + 60°C (Without freeze)
- Mechanical Protection:
- IP65
