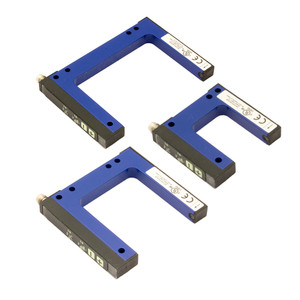

Datasensing FC6I/0B-0506-1F Sensors
Datasensing
$322.38
The Datasensing FC6I/0B-0506-1F Sensors are designed for precision and reliability in industrial applications. Featuring a 50mm width and 59mm depth slot detection, these sensors utilize infrared emission with a PNP/NPN output type, allowing for light/dark switching selectable by button. The sensors are equipped with a teach-in sensitivity adjustment for easy manual calibration using -/+ buttons, ensuring accurate detection of objects as small as 0.2mm. With a robust metal housing and IP65 protection, they are built to withstand harsh environments, operating efficiently within a temperature range of -20°C to +60°C.
The sensors offer a high switching frequency of 10 kHz and a rapid response time of 50 µs, making them ideal for fast-paced operations. They are equipped with M8 connectors (4 pins) and provide short-circuit and reverse polarity protection for enhanced safety. The LED indicators, yellow for status output and red for adjustment or block keypad, provide clear visual feedback. With a nominal sensing distance of 50mm and a load current capacity of up to 100mA, these sensors are versatile and reliable for various industrial needs. The painted aluminum housing and polyamide/glass active head material ensure durability, while compliance with CE UL and EMC compatibility standards guarantee quality and performance.
- Nominal sensing distance:
- 50mm
- minimum detectable object:
- 0.2mm
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Photoelectric slot
- Output type:
- NPN / PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 10kHz
- Response time:
- 50 µs
- Operating Voltage:
- 12...24VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?100mA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output), Red (adjustment or block keypad)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 85g
- Housing Material:
- Painted aluminium
- Connections:
- M8 plug 4pin
- Active Head Material:
- Polyamide/glass
- Operating temperature:
- - 20°C + 60°C
- Storage temperature:
- - 30°C + 80°C
- Width slot detection:
- 50mm
- Depth slot detection:
- 59mm
- Approvals:
- CE UL
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP65
- Operating Temperature:
- - 10°C + 60°C (Without freeze)
- Mechanical Protection:
- IP65
