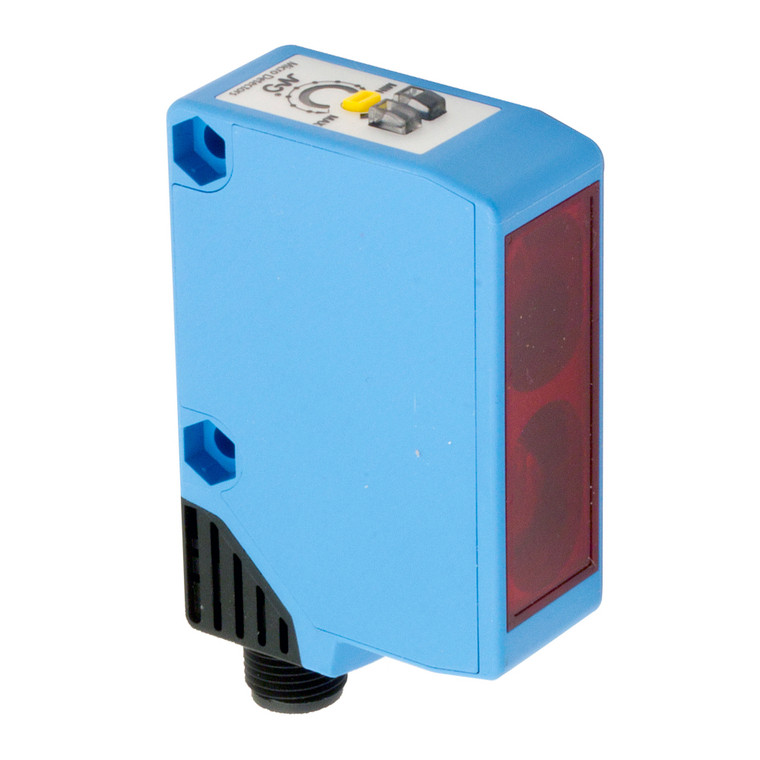

The Datasensing FGRW/0P-0E Sensors are designed for precision and reliability in various industrial applications. These sensors offer a cable output or a revolving connector, with options for NPN or PNP output in DC models and SPDT voltage-free relay output in AC models. They feature selectable LO/DO output status and are fully protected against electrical damages, ensuring durability and longevity. The sensors come in background suppression models with nominal sensing distances of 310 mm and 600 mm, and a reflex polarized sensitivity adjustment of up to 12 m. They are equipped with an emitter and receiver capable of a maximum detecting range of 50 m. The double multifunction LED indicator provides clear output state and usage pointing. With a sensitivity adjustment potentiometer featuring 2 turns and a position indicator, these sensors offer precise control. They have a minimum sensing distance (blind zone) of 110 mm and operate on a background suppression principle. The sensors are designed with an axial optic position and offer PNP L/D selectable output type and function. Operating at a switching frequency of 160Hz and a response time of 3.125ms, these sensors are efficient and responsive. They require an operating voltage of 10…30VDC, with a no-load supply current of ? 35mA and a load current of ?100mA. The output voltage drop is ?1.8V@Iload=100mA, with a maximum ripple content of 5Vpp. The sensors are equipped with green (power ON) and yellow (status output) LED indicators, and feature short-circuit and reverse polarity protection. They emit red LED light and are resistant to external light interference, withstanding up to 10,000 Lux of sunlight and 3,000 min HF lamp interference. Impulsive overvoltage protection is also included. Constructed with a cubic design, the sensors measure 20x44.9x60mm and weigh 40g. The housing is made of ABS, with an active head material of PMMA. They connect via an M12 plug and operate within a temperature range of -25°C to +55°C. The sensors are CE and UR approved, EMC compatible with EN 60947-5-2, and offer IP67 mechanical protection. They come with a mounting bracket STFG 00 for easy installation.
