Datasensing MSC/00-1H Sensors

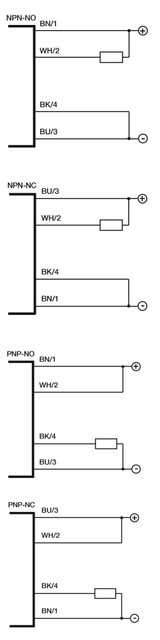

The Datasensing MSC/00-1H Sensors are high-performance photoelectric sensors designed for reliable retroreflective detection up to 4.5 meters. Featuring a robust nickel-plated brass housing and an M12 metal connector, these sensors are built to withstand harsh environments with an IP67 mechanical protection rating. The sensors offer a nominal sensing distance of 32 meters and maintain precision with a thermal drift of ?10% Sr and a repeat accuracy of 5%. With a selectable NPN/PNP output type and NO/NC output function, these sensors provide flexibility for various applications. They operate efficiently with a switching frequency of 80Hz and a response time of 6.25ms, ensuring quick and accurate detection. The sensors are equipped with LED infrared emission at 880nm and are resistant to external light interference, handling up to 3000lux from incandescent lamps and 10000lux from sunlight. The MSC/00-1H Sensors are designed with safety in mind, featuring short-circuit and overvoltage protection with an auto-reset function. They operate within a voltage range of 10 to 30VDC, with a no-load supply current of ?30mA and a load current of ?100mA. The output voltage drop is minimal at ?1.2V@Iload=100mA, and the sensors can handle a maximum ripple content of ?10%. These sensors are compliant with CE and cURus approvals and meet EMC compatibility standards EN 60947-5-2. They are also tested for durability against shocks and vibrations according to IEC standards. Supplied with M18 x 1 nuts, the sensors are easy to install and adjust with a tightening torque of 25Nm. Operating efficiently in temperatures ranging from -25°C to +70°C, the Datasensing MSC/00-1H Sensors are an ideal choice for demanding industrial applications.
