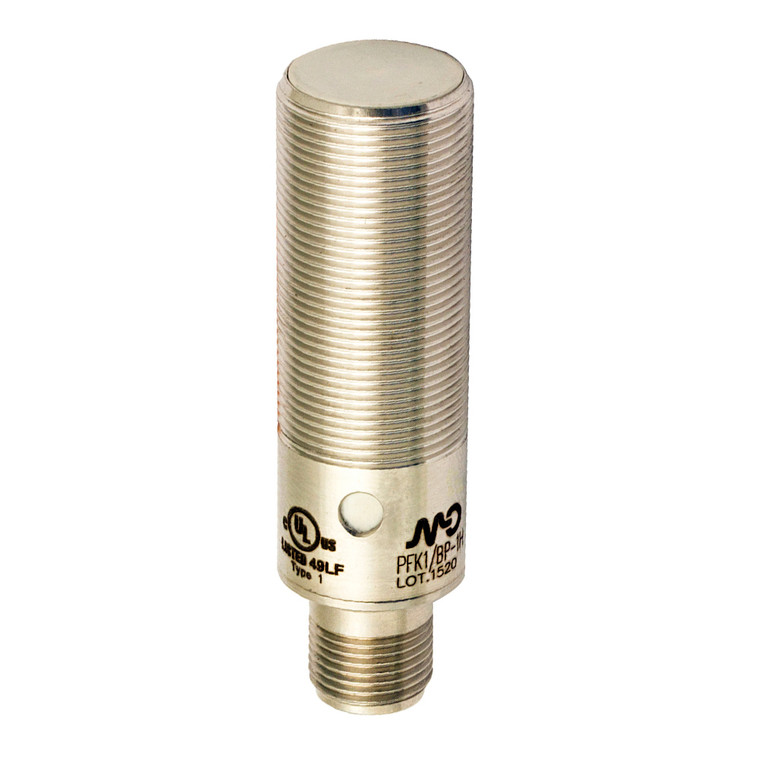

The Datasensing PFK1/BN-3HV5 Inductive Sensor is a high-performance proximity sensor designed for precision and reliability. Featuring a nominal sensing distance of 8mm and an operating range of 0 to 6.48mm, this sensor is ideal for detecting standard targets of 24x24mm FE360. It offers a correction factor for various materials, including copper (0.20), aluminium (0.30), brass (0.40), and stainless steel (0.65). With a thermal drift of Sr under 10% and repeat accuracy below 5% at 24V and 23°C, it ensures consistent performance. The sensor operates with a switching frequency of 1.5kHz and supports an operating voltage range of 10 to 30Vdc. It features a no-load supply current of ? 15mA and a load current of ? 200mA, with a leakage current of ? 10?A and an output voltage drop of ? 2V at 200mA. The sensor is equipped with a yellow LED indicator for output state and includes short-circuit, reverse polarity, and impulsive overvoltage protection. Its robust design includes a shielded mounting, AISI316L stainless steel housing, and PPS active head material, ensuring durability and resistance to harsh environments. The sensor is CE, cULus, ECOLAB, and DIVERSY approved, with EMC compatibility per IEC 60947-5-2 standards. It withstands shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards. Supplied with two M18x1 nuts, it is easy to install with an M12 plug connection. The sensor operates efficiently in temperatures ranging from -40°C to +80°C, with short exposure tolerance up to 100°C during cleaning processes, and offers IP67 mechanical protection.
