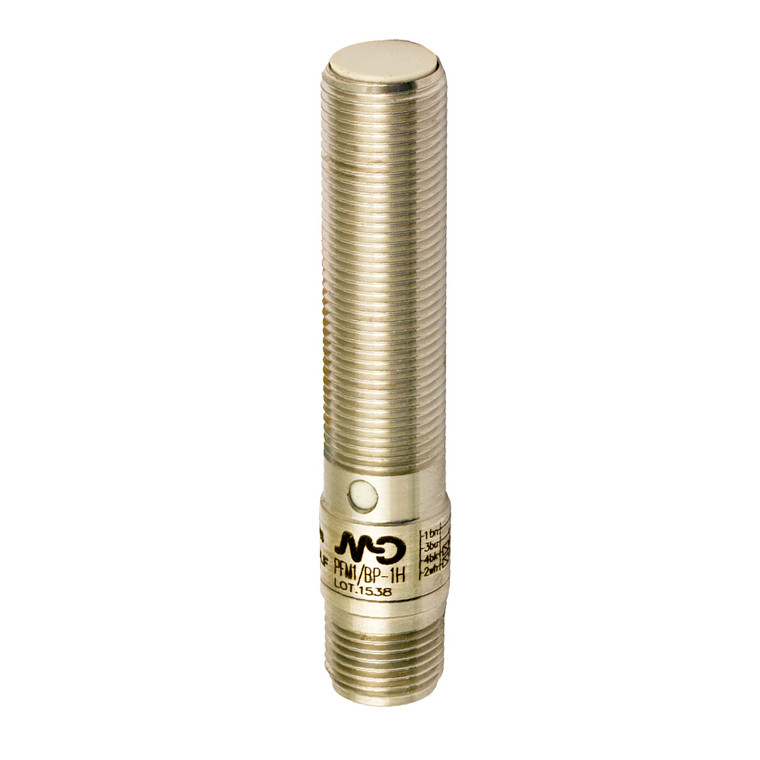

Datasensing PFM1/AN-1H Sensors
Datasensing
$76.09
The Datasensing PFM1/AN-1H Sensors are designed for precision and durability, featuring an M12 standard flush mount with a robust AISI 316L stainless steel housing. These inductive sensors offer a nominal sensing distance of 2mm and an operating distance of 0 to 1.62mm, making them ideal for proximity detection. Equipped with a yellow LED status indicator, they provide clear output state visibility. The sensors are engineered to withstand harsh environments, boasting IP67, IP68, and IP69K protection degrees, and are available in ATEX models for category 3 upon request.
With a switching frequency of 2kHz and an operating voltage range of 10 to 30Vdc, these sensors ensure reliable performance. They feature complete protection against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection. The sensors are compatible with various materials, offering correction factors for copper, aluminum, brass, and stainless steel.
Designed for ease of installation, the sensors come with an M12 plug connection and are supplied with two M12x1 nuts. They are capable of operating in temperatures ranging from -40°C to +80°C, with short exposure tolerance up to 100°C during cleaning processes. The sensors are CE, cULus, ECOLAB, and DIVERSEY approved, ensuring compliance with international standards. With a compact design and a weight of just 30g, these sensors are perfect for applications requiring high precision and reliability.
- Nominal sensing distance:
- 2mm
- Operanting distance:
- 0 1,62mm
- Standard target:
- 12x12mm FE360
- Correction Factor:
- copper: 0,25 / aluminium: 0,30 / brass: 0,40 / stainless steel: 0,75
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M12 standard flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NO
- Switching frequency:
- 2kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 15mA
- Load current:
- ? 200mA
- Leakage current:
- ? 15?A
- Output voltage drop:
- ? 2V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 30g
- Housing Material:
- AISI316L Stainless Steel
- Connections:
- M12 Plug
- Active Head Material:
- PPS
- Tightening torque:
- 25Nm
- Material:
- AISI316L Stainless Steel
- Diameter/Dimension:
- M12
- Approvals:
- CE cULus ECOLAB DIVERSEY
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP68, IP69K
- Supplied Accessories:
- 2 nuts M12x1
- Mechanical Protection:
- IP67
