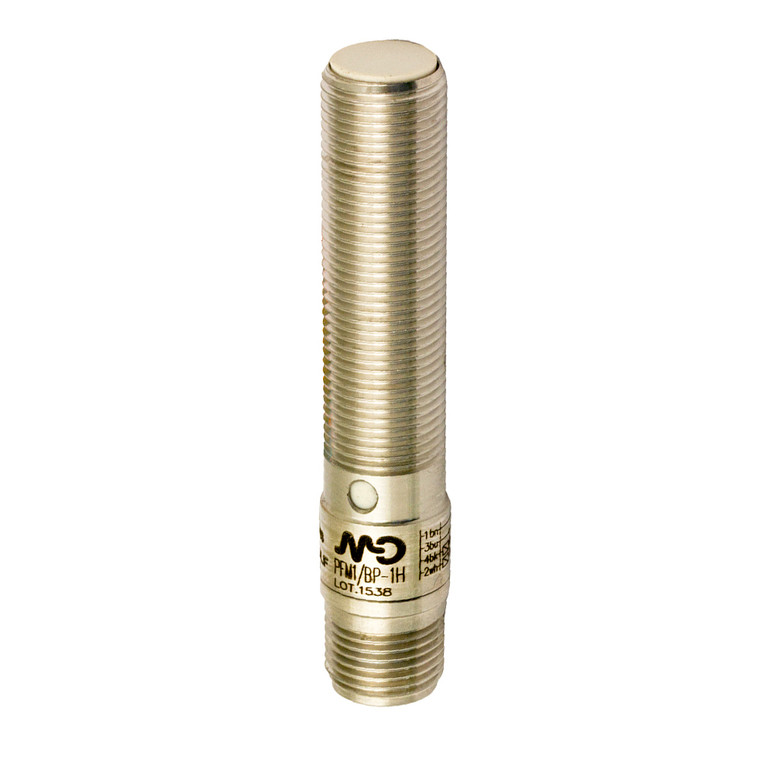

Datasensing PFM1/AP-1H Sensors

The Datasensing PFM1/AP-1H Sensors are designed with a robust AISI 316L stainless steel housing, ensuring durability and resistance to harsh environments. Equipped with an LED status indicator, these sensors offer reliable performance with IP67, IP68, and IP69K protection degrees, making them suitable for demanding applications. The sensors feature a nominal sensing distance of 2mm and an operating distance of 0 to 1.62mm, with a standard target size of 12x12mm FE360. They provide complete protection against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection. These sensors are available in both standard and long-distance models, with ATEX category 3 models available upon request. The PFM1/AP-1H sensors operate with a PNP output type and a NO output function, supporting a switching frequency of 2kHz. They are designed to handle an operating voltage range of 10 to 30Vdc, with a no-load supply current of ? 15mA and a load current of ? 200mA. The sensors also feature a yellow LED output state indicator and a time delay before availability of ? 50ms. With a compact M12 x 1 design and a length of 64.6mm, these sensors are easy to install and maintain. They are CE, cULus, ECOLAB, and DIVERSEY approved, ensuring compliance with international standards. The sensors are also EMC compatible with IEC 60947-5-2 and can withstand shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards. Supplied with two M12x1 nuts, the Datasensing PFM1/AP-1H Sensors are an ideal choice for applications requiring high precision and reliability in challenging conditions.
