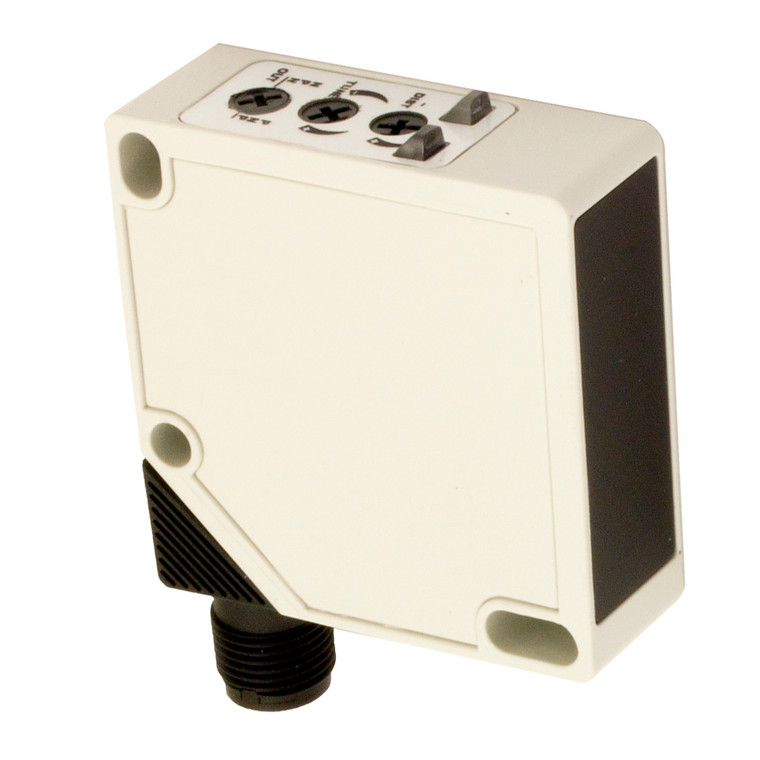

Datasensing Q50ID/B0-0E Sensors
Datasensing
$106.86
The Datasensing Q50ID/B0-0E Sensors are universal photoelectric sensors designed for high performance and versatility. With a compact 50x50mm cubic design, these sensors offer a wide range of optical functions, including diffuse sensing up to 2 meters, background suppression up to 500 mm, polarized sensing up to 6 meters, and through beam sensing up to 20 meters. The sensors feature a trimmer for sensitivity adjustment and an axial optic position, ensuring precise detection.
Equipped with selectable NPN/PNP outputs and NO+NC output functions, the Q50ID/B0-0E sensors provide flexibility for various applications. They operate on a voltage range of 10 to 30VDC, with a no-load supply current of ? 40mA and a load current of ?200mA. The sensors are designed with a fast switching frequency of 500Hz and a quick response time of 1ms, making them suitable for dynamic environments.
Built to withstand harsh conditions, these sensors are protected against electrical damages, short-circuits, and reverse polarity. They are housed in durable PC/ABS material with an IP67 degree of protection, ensuring reliability in challenging environments. The sensors come with dual multifunction output state LEDs, providing clear indication of output status and stability. Operating efficiently in temperatures ranging from -20°C to +60°C, the Q50ID/B0-0E sensors are ideal for a variety of industrial applications. Supplied with a mounting bracket, they are easy to install and integrate into existing systems.
- Nominal sensing distance:
- 20m
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Receiver
- Optic position:
- Axial
- Output type:
- NPN/PNP Selectable NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 500Hz
- Response time:
- 1ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?200mA
- Output voltage drop:
- ?2,5V@Iload=200mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Output status), Green (stability, powerON)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Dimensions:
- 50X50mm
- Weight:
- 105g
- Housing Material:
- PC/ABS
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Operating temperature:
- - 20°C + 60°C ( UL omologation 0°C 60°C)
- Material:
- PC/ABS
- Diameter/Dimension:
- Cubic
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-58
- Degree of protection:
- IP67
- Supplied Accessories:
- Mounting bracket
- Dimensions:
- 50x50x17mm
- Operating Temperature:
- - 20°C + 60°C (Without freeze)
- Mechanical Protection:
- IP67
