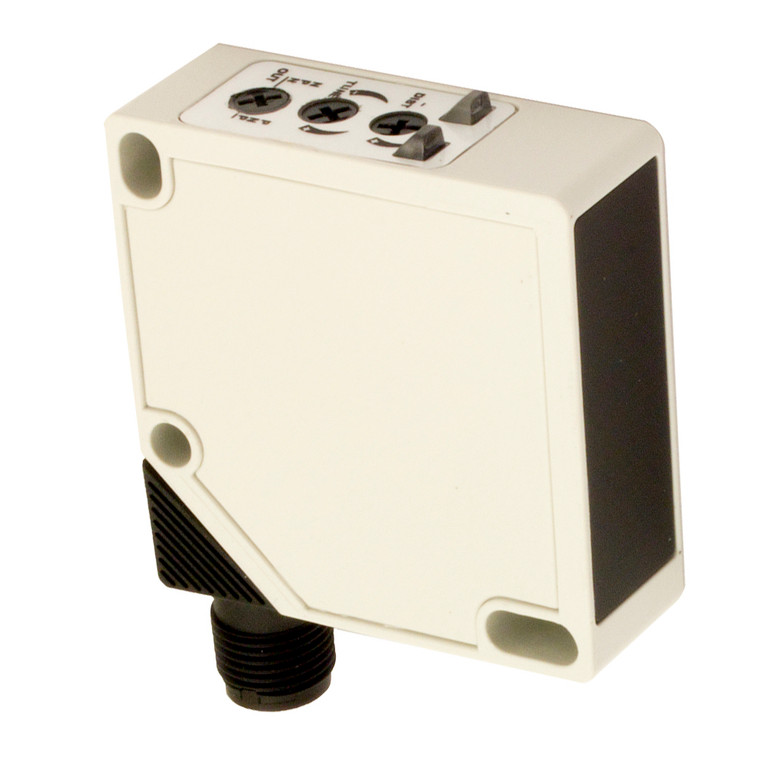

Datasensing Q50RN/B0-0E Sensors
Datasensing
$131.07
The Datasensing Q50RN/B0-0E Sensors are universal photoelectric sensors designed for high performance and versatility. With a nominal sensing distance of 6 meters and a polarized function principle, these sensors are ideal for a wide range of applications. They feature a robust cubic design with dimensions of 50x50x17mm and are constructed from durable PC/ABS material, ensuring long-lasting use even in challenging environments.
Equipped with NPN/PNP selectable NO+NC outputs, these sensors offer flexibility in integration with various systems. The sensors boast a high switching frequency of 500Hz and a rapid response time of 1ms, making them suitable for fast-paced operations. The operating voltage ranges from 10 to 30VDC, with a no-load supply current of ? 40mA and a load current of ?200mA, ensuring efficient power consumption.
The Q50RN/B0-0E Sensors are protected against electrical damages, featuring short-circuit and reverse polarity protection. They are equipped with dual multifunction output state LEDs, with yellow indicating output status and green for stability and power ON. The sensors also offer a wide choice of optical functions, including diffuse, background suppression, polarized, and through beam, catering to diverse sensing needs.
Designed to withstand harsh conditions, these sensors operate effectively within a temperature range of -20°C to +60°C and are IP67 rated for mechanical protection. They come with an M12 plug connection and include a mounting bracket for easy installation. With EMC compatibility to EN 60947-5-2 standards and resistance to shocks and vibrations, the Datasensing Q50RN/B0-0E Sensors are a reliable choice for industrial automation and control applications.
- Nominal sensing distance:
- 6m
- Sensitivity adjustment:
- Trimmer
- Minimum sensing distance (blind zone):
- 0,2m
- Function Principle:
- Polarized
- Optic position:
- Axial
- Output type:
- NPN/PNP Selectable NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 500Hz
- Response time:
- 1ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?200mA
- Output voltage drop:
- ?2,5V@Iload=200mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Output status), Green (stability, powerON)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (660nm)
- Dimensions:
- 50X50mm
- Weight:
- 200g
- Housing Material:
- PC/ABS
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Operating temperature:
- - 20°C + 60°C ( UL omologation 0°C 60°C)
- Material:
- PC/ABS
- Diameter/Dimension:
- Cubic
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-66
- Degree of protection:
- IP67
- Supplied Accessories:
- Mounting bracket
- Dimensions:
- 50x50x17mm
- Operating Temperature:
- - 20°C + 60°C (Without freeze)
- Mechanical Protection:
- IP67
