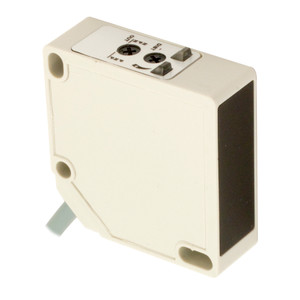

Datasensing Q50RN/B0-0A Sensors
Datasensing
$117.32
The Datasensing Q50RN/B0-0A Sensors are universal photoelectric sensors designed for high performance and versatility. With a compact 50x50mm cubic design, these sensors offer a nominal sensing distance of 6 meters and feature a polarized function principle for precise detection. The sensors are equipped with NPN/PNP selectable NO+NC outputs, providing flexibility for various applications. They boast a fast switching frequency of 500Hz and a quick response time of 1ms, ensuring efficient operation.
Built to withstand challenging environments, the Q50RN/B0-0A sensors are housed in durable PC/ABS material and are protected against electrical damages with short-circuit and reverse polarity protection. The sensors operate within a wide voltage range of 10 to 30VDC and have a low no-load supply current of ? 40mA. They are equipped with dual multifunction output state LEDs, with yellow indicating output status and green for stability and power ON.
The sensors offer a wide choice of optical functions, including diffuse sensing up to 2 meters, background suppression up to 500mm, polarized sensing up to 6 meters, and through beam sensing up to 20 meters. They are designed to operate in temperatures ranging from -20°C to +60°C and are compliant with EMC compatibility standards EN 60947-5-2. With an IP67 degree of protection, these sensors are resistant to dust and water, making them suitable for a variety of industrial applications. Supplied with a mounting bracket, the Datasensing Q50RN/B0-0A Sensors are ready for easy installation and reliable performance.
- Nominal sensing distance:
- 6m
- Sensitivity adjustment:
- Trimmer
- Minimum sensing distance (blind zone):
- 0,2m
- Function Principle:
- Polarized
- Optic position:
- Axial
- Output type:
- NPN/PNP Selectable NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 500Hz
- Response time:
- 1ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?200mA
- Output voltage drop:
- ?2,5V@Iload=200mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Output status), Green (stability, powerON)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (660nm)
- Dimensions:
- 50X50mm
- Weight:
- 200g
- Housing Material:
- PC/ABS
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Operating temperature:
- - 20°C + 60°C ( UL omologation 0°C 60°C)
- Material:
- PC/ABS
- Diameter/Dimension:
- Cubic
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-65
- Degree of protection:
- IP67
- Supplied Accessories:
- Mounting bracket
- Dimensions:
- 50x50x17mm
- Operating Temperature:
- - 20°C + 60°C (Without freeze)
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- Catalog:
- View
- User Manuals:
- View
