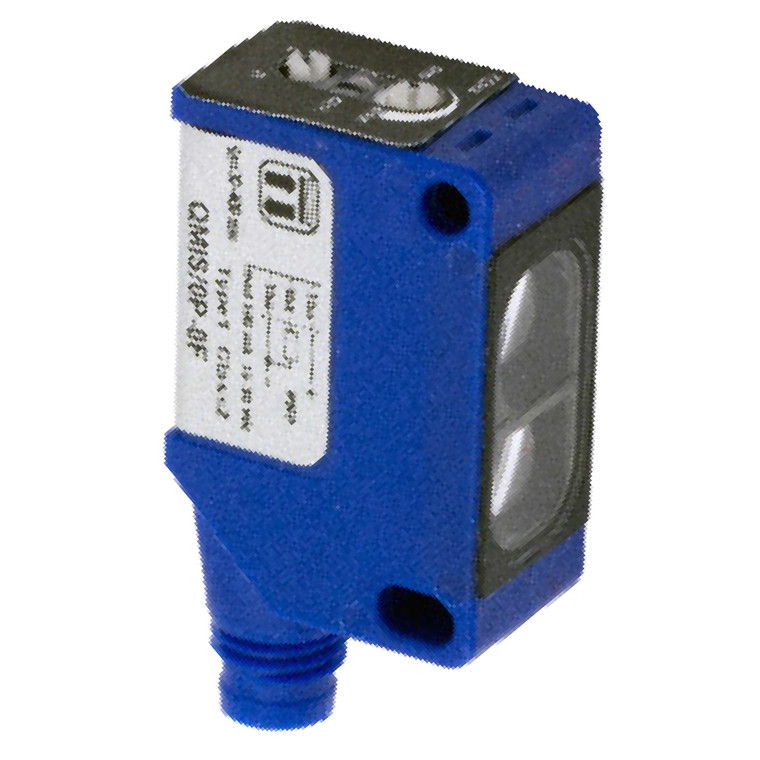

Datasensing QMIG/0N-0F Sensors
Datasensing
$162.72
The Datasensing QMIG/0N-0F Sensors are advanced miniature cubic photoelectric sensors designed for high-performance detection of transparent objects. With a nominal sensing distance of 1 meter and a thermal drift of Sr ?10% Sr, these sensors offer precise and reliable operation. The sensors feature a polarized adjustment and an infrared LED emission at 850nm, ensuring accurate detection even in challenging environments.
Equipped with a 2 kHz switching frequency and a response time of just 250µs, the QMIG/0N-0F sensors provide rapid and efficient performance. The sensors are designed with a radial 90° optic position and offer selectable LO/DO output states, making them versatile for various applications.
Built with robust PA66 housing and PMMA active head material, these sensors are completely filled with resin (except for background suppression models) to provide complete protection against electrical damages. They are equipped with short-circuit and reverse polarity protection, ensuring durability and reliability in industrial settings.
The sensors are compatible with M8 plug 4-pin connections and have a compact design with dimensions of 40.6x21x13mm, weighing only 10g. They operate within a voltage range of 10
30VDC, with a no-load supply current of ? 30mA and a load current of ?100mA. The sensors are designed to withstand external light interference up to 3000lux from incandescent lamps and 10000lux from sunlight.
With approvals from CE and cULus, and EMC compatibility with EN 60947-5-2, the QMIG/0N-0F sensors are built to meet high standards of safety and performance. They are also designed to endure shocks and vibrations as per IEC standards, with an IP67 degree of protection, making them suitable for harsh industrial environments. The operating temperature range is -25°C to +70°C, ensuring reliable performance without freezing.
- Nominal sensing distance:
- 1m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Minimum sensing distance (blind zone):
- 0,05m
- Function Principle:
- Transparent objects
- Notes:
- On RL110 reflector
- Optic position:
- Radial 90°
- Output type:
- NPN L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 2kHz
- Response time:
- 250µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (850nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 10g
- Housing Material:
- PA66
- Connections:
- M8 plug 4pin
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Storage temperature:
- - 30°C + 80° C (Without freeze)
- Diameter/Dimension:
- Cubic
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
