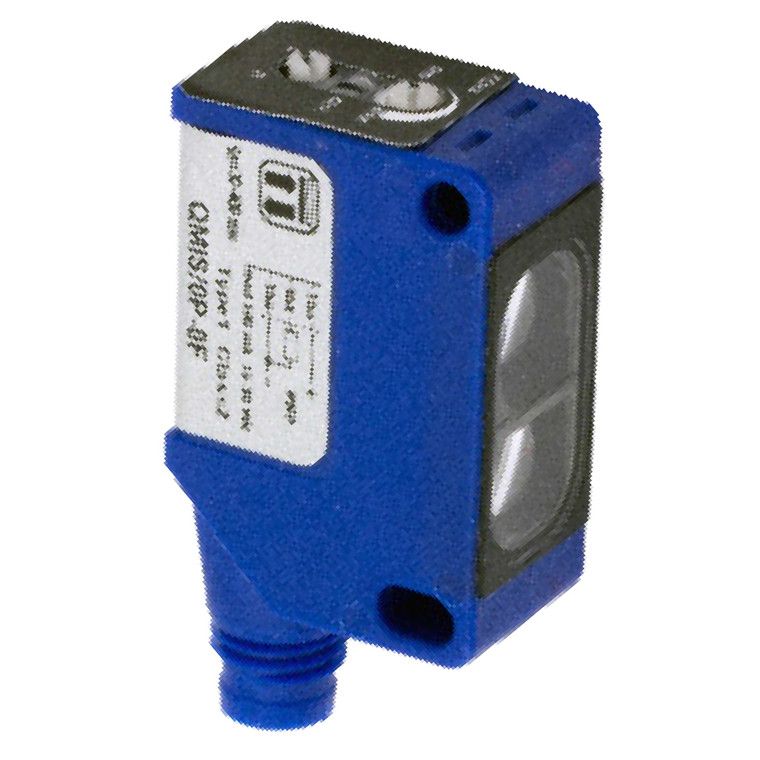

Datasensing QMRL/0P-0F Sensors
Datasensing
$162.72
The Datasensing QMRL/0P-0F Sensors are advanced cubic miniaturized photoelectric sensors designed for high-performance applications. These sensors offer a long sensing distance and a 2 kHz switching frequency, making them ideal for various industrial environments. They feature background suppression with mechanical adjustment, ensuring precise detection even in challenging conditions. The product line includes a wide range of models, such as diffuse reflection with short, medium, and long sensing distances, polarized, reflective for transparent objects, through-beam, and background suppression options.
These sensors are available with either a cable and M8 plug exit or an M8-M12 pig-tail, providing flexibility in installation. The selectable LO/DO output state allows for customization based on specific application needs. Except for the background suppression models, the sensors are completely filled with resin, offering complete protection against electrical damages.
Key specifications include a nominal sensing distance of 4 meters, a thermal drift of Sr ?10% Sr, and a repeat accuracy of 5%. The sensitivity can be adjusted using a trimmer, and the minimum sensing distance (blind zone) is 0.4 meters. The sensors operate on a voltage range of 10 to 30 VDC, with a no-load supply current of ? 30mA and a load current of ?100mA. They feature short-circuit and reverse polarity protection, ensuring reliable operation.
The sensors are equipped with LED indicators for status output and stability, and they are designed to withstand external light interference up to 3000 lux from incandescent lamps and 10000 lux from sunlight. With a compact size of 40.6x21x13mm and a weight of just 10g, these sensors are easy to integrate into various systems. They are housed in durable PA66 material with an active head made of PMMA, offering a high degree of mechanical protection (IP67) and compliance with CE cULus and EMC standards. The operating temperature range is -25°C to +70°C, making them suitable for a wide range of environments.
- Nominal sensing distance:
- 4m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Minimum sensing distance (blind zone):
- 0,4m
- Function Principle:
- Transparent objects
- Notes:
- On RL110 reflector
- Optic position:
- Radial 90°
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output), green (stability)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (630nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 10g
- Housing Material:
- PA66
- Connections:
- M8 plug 4pin
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Storage temperature:
- - 30°C + 80° C (Without freeze)
- Diameter/Dimension:
- Cubic
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
