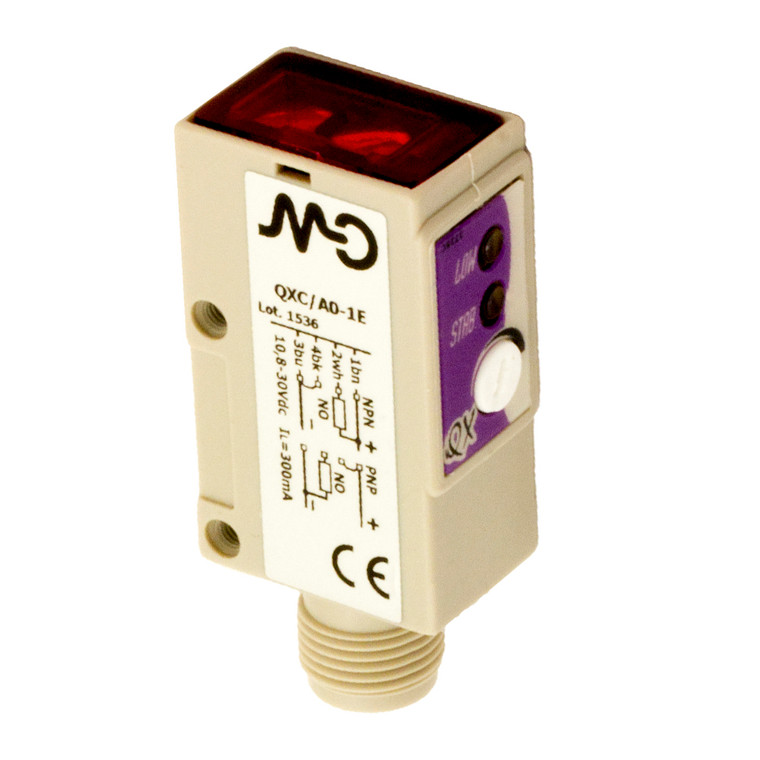

Datasensing QX3/C0-1E Sensors
Datasensing
$184.00
The Datasensing QX3/C0-1E Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring a diffuse reflection function with a nominal sensing distance of 300mm, these sensors are equipped with axial optics for medium-distance detection up to 600mm. The device offers selectable NPN/PNP output with a normally closed (NC) function, ensuring versatile integration into various systems.
With a fast response time of 666µs and a high switching frequency of 750Hz, the QX3/C0-1E sensors are ideal for applications requiring quick and accurate detection. The sensors are built to withstand challenging environments, boasting an IP65 degree of protection and operating temperatures ranging from -25°C to +70°C.
The robust ABS housing and acrylic active head material ensure durability, while the M12 plug connection facilitates easy installation. The sensors also feature LED indicators for output status and stability, providing clear visual feedback. Additional features include short-circuit and reverse polarity protection, making these sensors a reliable choice for industrial automation needs. Supplied with ST70 mounting brackets and screws, the Datasensing QX3/C0-1E Sensors are ready for seamless integration into your system.
- Nominal sensing distance:
- 300mm
- Repeat Accuracy:
- ? 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (medium distance, ?600mm)
- Optic position:
- Axial
- Output type:
- NPN/PNP Selectable NC
- Output Function:
- NC
- Switching frequency:
- 750Hz
- Response time:
- 666µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 20mA
- Load current:
- ?300mA
- Leakage current:
- ? 100?A @ 30Vdc
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Red(output status) , Geen (stability)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux Incandescent Lamp, 10000lux
- Dimensions:
- 15x23x47
- Weight:
- 70g
- Connections:
- M12 plug
- Active Head Material:
- Acrylic
- Operating temperature:
- - 25°C + 70°C ( without freeze)
- Material:
- ABS
- Diameter/Dimension:
- Cubic
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-28
- Degree of protection:
- IP65
- Supplied Accessories:
- ST70 mounting brakets and screws
- Dimensions:
- 15x23x40
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP65
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
