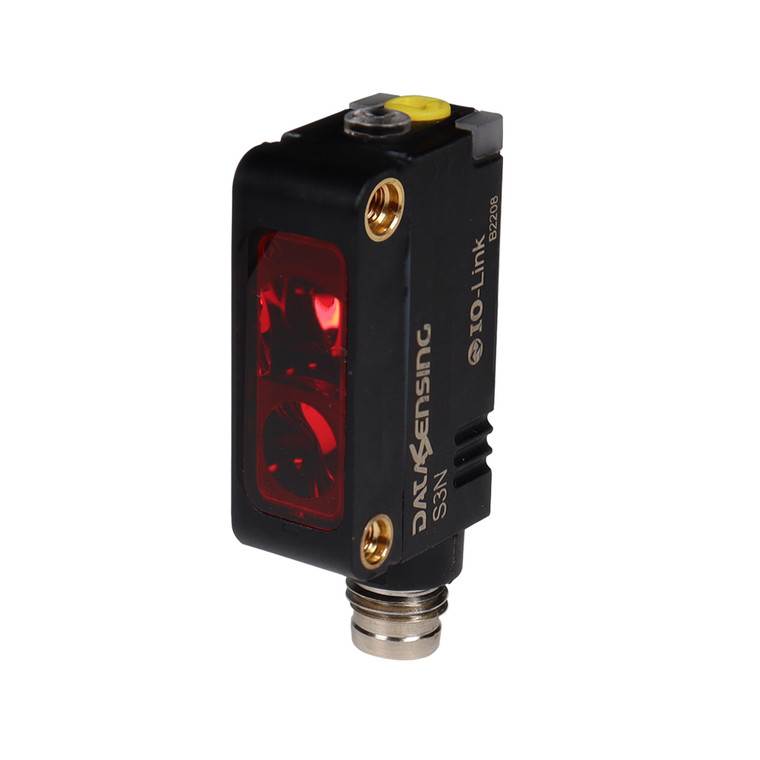

Datasensing Red LED emission Through Beam Transmitter and receiver Push Button Teach in IO-Link Connector M8 4P
Datasensing
$201.57
The Datasensing Red LED Emission Through Beam Transmitter and Receiver is a state-of-the-art sensor designed for precision and reliability. Featuring a visible and bright red LED emission, this device excels in detecting shiny and clear objects with its advanced background suppression functions. It offers a nominal sensing distance of 20 meters and operates with a push button TEACH-IN sensitivity adjustment, ensuring easy setup and calibration.
This sensor is equipped with IO-Link connectivity, providing seamless integration into smart systems and enabling extended smart tasks. It boasts a rugged IP67 plastic miniature case with M3 threaded holes and metal inserts for secure mounting. The device is designed to withstand harsh environments, with a wide operating temperature range of -25°C to 55°C and robust protection against short-circuits, reverse polarity, and impulsive overvoltage.
The sensor's radial 90° optic position and through-beam emitter and receiver function make it ideal for various industrial applications. It features a high switching frequency of 1kHz and a rapid response time of 500µs, ensuring quick and accurate detection. The device is equipped with multiple LED indicators, including a yellow OUTPUT LED, green Power ON LED, and a blue LED for IO-Link activity, providing clear visual feedback during operation.
Constructed with durable materials such as plastic polymer fiber glass reinforced housing and PMMA active head, this sensor is built to last. It meets CE cULus IO-Link approvals and EMC compatibility standards, ensuring reliable performance in demanding environments. With its compact dimensions of 11x31x19 mm and a convenient M8 plug 4-pin connection, the Datasensing Red LED Emission Through Beam Transmitter and Receiver is a versatile and efficient solution for your sensing needs.
- Nominal sensing distance:
- 20m
- Sensitivity adjustment:
- Push Button TEACH-IN
- Minimum sensing distance (blind zone):
- 0mm
- Function Principle:
- Through beam emitter and receiver
- Optic position:
- Radial 90°
- Functions:
- Through beam emitter and receiver
- Output type:
- IO-Link
- Output Function:
- IO-Link
- Switching frequency:
- 1kHz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 35mA
- Load current:
- ?100mA
- Leakage current:
- ? 400 ?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- yellow OUTPUT LED, green Power ON LED and user interface interaction during teach, blu LED IO-Link Activity
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (635nm)
- Interference to external light:
- according to EN 60947-5-2 : 2020
- Impulsive Overvoltage Protection:
- Yes
- Insulation resistance:
- >20 M? 500 Vdc, between electronics and housing
- Contact resistance:
- 500 Vac 1 min., between electronics and housing
- 0,1µF @Vmax - 1µF @Vmin:
- Yes
- Housing Material:
- Plastic Polymer Fiber Glass reinforced
- Connections:
- M8 plug 4pin
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C +70°C
- Plug connector material:
- Metal
- shaft material:
- POM, PMMA
- Diameter/Dimension:
- Cubic
- Approvals:
- CE cULus IO-Link
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- 0.5 mm amplitude, 10 55 Hz frequency, for every axis (EN60068-2-6)
- Dimensions:
- 11x31x19 mm
- Operating Temperature:
- -25°C ... 55°C
- Mechanical Protection:
- IP67
