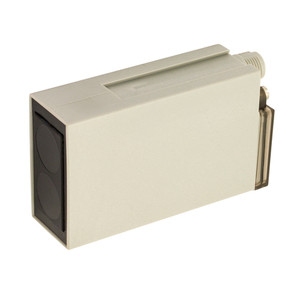

Datasensing RX8/00-3A Sensors
Datasensing
$146.27
The Datasensing RX8/00-3A Sensors offer a versatile range of models including diffuse reflection, retro-reflective, polarized, through-beam, and background suppression, making them suitable for various applications. These sensors boast high performance with a nominal sensing distance of 2 meters and compact dimensions of 26x86.6x50 mm, allowing for easy installation in tight spaces. Equipped with a relay output or multifunctional DECOUT®, they provide reliable operation with a switching frequency of 25Hz and a response time of 20ms.
The sensors feature a timer function with delay on, delay off, and one-shot capabilities, along with a trimmer for sensitivity adjustment, ensuring precise detection. The LED alignment indicator offers 360° visibility, with two LED indicators for stable signal and output status. The M12 standard plug cable exit and axial and right-angle brackets enhance connectivity and mounting flexibility.
Designed to withstand harsh environments, the RX8/00-3A Sensors have an operating temperature range of -25°C to +70°C and are protected against reverse polarity and impulsive overvoltage. With a degree of protection rated at IP65, they are resistant to dust and water ingress. The sensors are CE approved and EMC compatible with EN 60947-5-2 standards, ensuring compliance with industry regulations. Supplied with an ST80 mounting bracket and screws, these sensors are ready for immediate deployment in your sensing applications.
- Nominal sensing distance:
- 2m
- Thermal drift of Sr:
- 10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (long distance, >600mm)
- Notes:
- white target Kodak 90% 400 x 400mm EG=1,5
- Optic position:
- Axial
- Output type:
- Relay SPST NO/NC
- Output Function:
- NO/NC
- Switching frequency:
- 25Hz
- Response time:
- 20ms
- Operating Voltage:
- 20...60VDC /20...253VAC/50-60Hz
- No-Load supply current:
- ? 25mARMS
- Load current:
- 3A-250Vac/3A-30Vdc (750VA/90W)
- Max ripple content:
- ?10%
- LED indicators:
- Red (output status) o (alineament), Green (stability)
- Time delay before availability:
- ?200ms
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- ? 5000lux (incandescent lamp)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 75g
- Housing Material:
- PC
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Operating temperature:
- - 25°C + 70°C ( without freeze)
- Diameter/Dimension:
- Cubic
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-28
- Degree of protection:
- IP65
- Supplied Accessories:
- ST80 mounting bracket and screws
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP65
