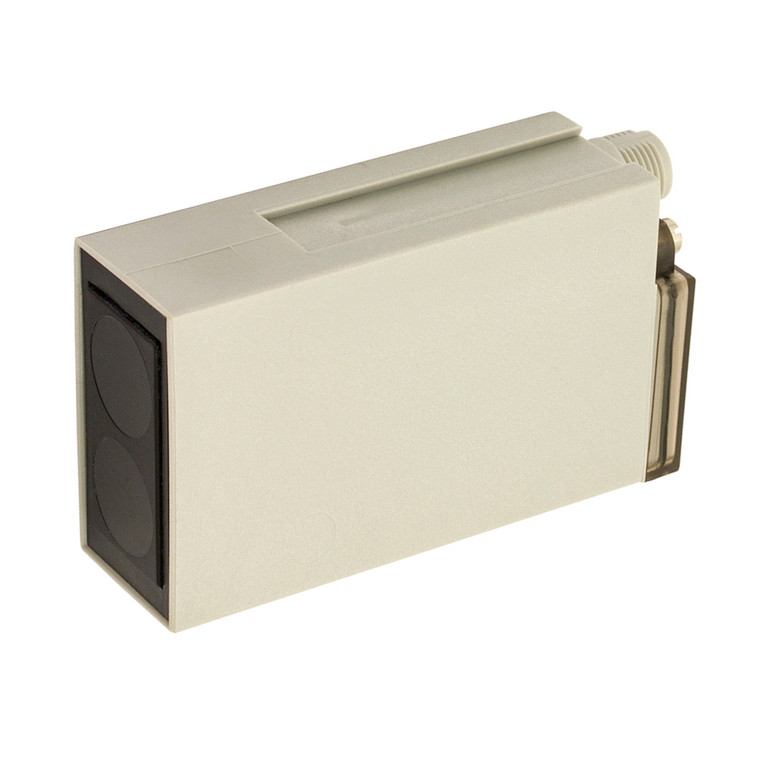

Datasensing RXC/0T-1A Sensors

The Datasensing RXC/0T-1A Sensors are advanced photoelectric sensors designed for retroreflective applications with a nominal sensing distance of 12 meters. These sensors offer a range of models including diffuse reflection, retro-reflective, polarized, through-beam, and background suppression, providing high performance and versatile installation options. With compact dimensions and a robust design, they are equipped with a relay output or multifunctional DECOUT® for flexible operation. Key features include a timer function with delay on, delay off, and one-shot capabilities, along with a trimmer for precise sensitivity adjustment. The sensors are designed with a switch to reduce emission for fine detection in through-beam types, and feature an LED alignment indicator with 360° visibility, complemented by two LED indicators for stable signal and output status. The RXC/0T-1A Sensors are built with an M12 standard plug cable exit and come with axial and right-angle brackets for easy installation. They operate on a voltage range of 10 to 30VDC, with a no-load supply current of ? 25mA and a load current of ?100mA. The sensors are equipped with short-circuit and reverse polarity protection, ensuring reliable performance in various environments. Constructed with a durable PC housing and PMMA active head material, these sensors are designed to withstand operating temperatures from -25°C to +70°C without freezing. They are CE cULus approved and meet EMC compatibility standards EN 60947-5-2, with a degree of protection rated at IP65. The sensors are supplied with an ST80 mounting bracket and screws, making them ready for immediate deployment in industrial settings.
