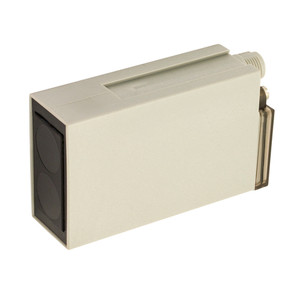

Datasensing RXC/0T-3A Sensors

The Datasensing RXC/0T-3A Sensors are advanced photoelectric sensors designed for retroreflective applications with a nominal sensing distance of 12 meters. These sensors offer a range of models including diffuse reflection, retro-reflective, polarized, through-beam, and background suppression, providing high performance and versatile installation options. With compact dimensions, they are ideal for space-constrained environments. Equipped with a relay output or multifunctional DECOUT®, the RXC/0T-3A features a timer function with delay on, delay off, and one-shot capabilities, along with a trimmer for sensitivity adjustment. The sensor includes a switch to reduce emission for precise detection in through-beam types. It also boasts a 360° visible LED alignment indicator and dual LED indicators for stable signal and output status. The sensor operates on a wide voltage range of 20...60VDC / 20...253VAC/50-60Hz, with a no-load supply current of ? 25mARMS and a load current capacity of 3A-250Vac/3A-30Vdc (750VA/90W). It features reverse polarity and impulsive overvoltage protection, ensuring reliable performance in various conditions. The RXC/0T-3A is housed in a durable PC material with an active head made of PMMA, offering an IP65 degree of protection against dust and water. With a compact cubic design measuring 26x86.6x50 mm and weighing just 75g, the sensor is easy to install using the included ST80 mounting bracket and screws. It is approved with CE and EMC compatibility (EN 60947-5-2) and can withstand shocks and vibrations as per IEC standards. The operating temperature range is -25°C to +70°C, making it suitable for diverse industrial environments.
