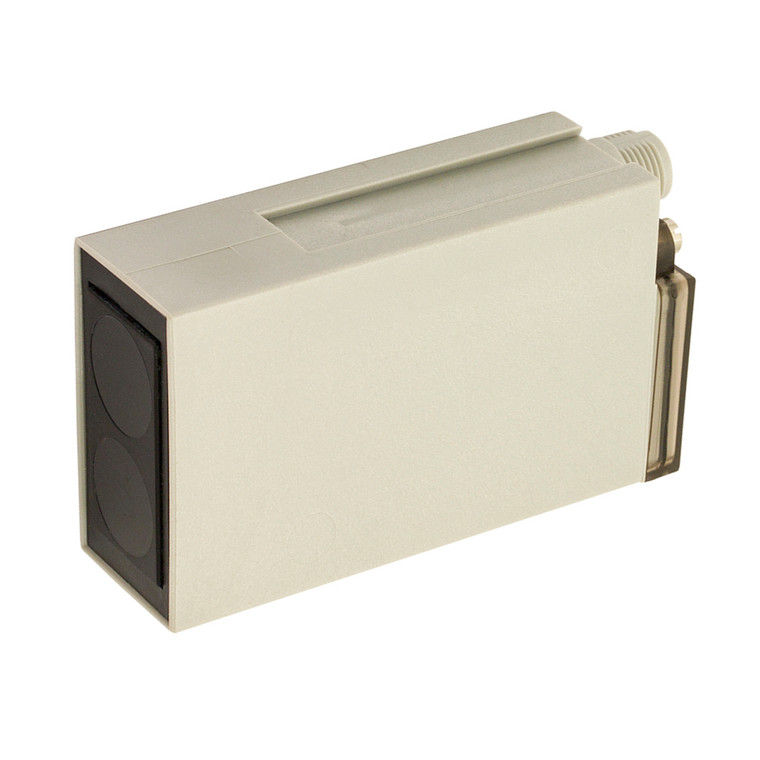

Datasensing RXL/0T-3A Sensors
Datasensing
$206.64
The Datasensing RXL/0T-3A Sensors are advanced photoelectric sensors designed for high-performance applications with a wide range of installation possibilities. These sensors feature a background suppression function, ensuring precise detection with a nominal sensing distance of 1 meter and a minimum sensing distance of 0.25 meters. The compact cubic design, measuring 26x86.6x50 mm, allows for easy integration into various setups.
Equipped with a relay output or multifunctional DECOUT®, the RXL/0T-3A offers versatile output functions (NO/NC) and a switching frequency of 25Hz. The sensor includes a timer function with delay on, delay off, and one-shot capabilities, along with a trimmer for sensitivity adjustment. The LED alignment indicator provides 360° visibility, with red and green LEDs indicating output status and stability, respectively.
The sensor operates within a voltage range of 20...60VDC / 20...253VAC/50-60Hz, with a load current capacity of 3A-250Vac/3A-30Vdc. It features reverse polarity and impulsive overvoltage protection, ensuring reliable performance in challenging environments. The housing is made of durable PC material, with an active head of PMMA, and is rated IP65 for mechanical protection.
The RXL/0T-3A is designed to withstand operating temperatures from -25°C to +70°C and is resistant to shocks and vibrations as per IEC standards. It comes with an M12 standard plug for easy connectivity and includes an ST80 mounting bracket and screws for secure installation. With CE approvals and EMC compatibility, this sensor is ideal for applications requiring high accuracy and reliability.
- Nominal sensing distance:
- 1m
- Thermal drift of Sr:
- 10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Minimum sensing distance (blind zone):
- 0,25m
- Function Principle:
- Blackground suppression
- Notes:
- white target Kodak 90% 400 x 400mm EG=1,5
- Optic position:
- Axial
- Output type:
- Relay SPST NO/NC
- Output Function:
- NO/NC
- Switching frequency:
- 25Hz
- Response time:
- 20ms
- Operating Voltage:
- 20...60VDC /20...253VAC/50-60Hz
- No-Load supply current:
- ? 30mARMS
- Load current:
- 3A-250Vac/3A-30Vdc (750VA/90W)
- Max ripple content:
- ?10%
- LED indicators:
- Red (output status) o (alineament), Green (stability)
- Time delay before availability:
- ?200ms
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- ? 5000lux (incandescent lamp)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 75g
- Housing Material:
- PC
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Operating temperature:
- - 25°C + 70°C ( without freeze)
- Diameter/Dimension:
- Cubic
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-28
- Degree of protection:
- IP65
- Supplied Accessories:
- ST80 mounting bracket and screws
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP65
