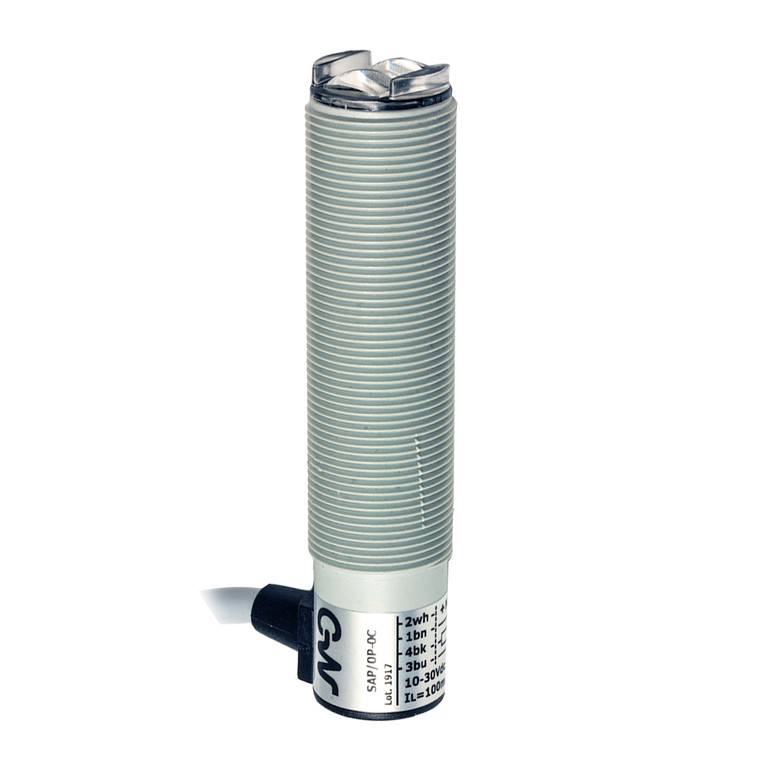

Datasensing SAP/0P-0C Sensors
Datasensing
$152.24
The Datasensing SAP/0P-0C Sensors are advanced photoelectric sensors designed for precision and reliability. With a nominal sensing distance of 3 meters and a polarized function principle, these sensors are ideal for a variety of applications. They feature a sensitivity adjustment trimmer for fine-tuning performance and a double LED indicator for clear status visibility. The sensors offer a selectable NO/NC output and are protected against electrical damage with IP65 and IP67 protection degrees, ensuring durability in harsh environments.
These sensors operate efficiently with a switching frequency of 1kHz and a response time of 500µs, powered by an operating voltage range of 10 to 30VDC. They are designed to handle a load current of up to 100mA with minimal leakage and voltage drop. The robust housing made of PBT and the active head material of PMMA ensure long-lasting performance, even in temperatures ranging from -25°C to +70°C.
The SAP/0P-0C Sensors are equipped with short-circuit and reverse polarity protection, making them a reliable choice for industrial settings. They are compatible with a wide range of plugs, accessories, and reflectors, and come with CE approvals, ensuring compliance with international standards. Whether used in diffuse, retro-reflective, or fixed-focus models, these sensors provide exceptional accuracy and stability, making them a versatile solution for your sensing needs.
- Nominal sensing distance:
- 3m
- Thermal drift of Sr:
- 10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Polarized
- Notes:
- On RL110 reflector
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10µA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green (powerON), Yellow (Status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (660nm)
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Weight:
- 75g
- Housing Material:
- PBT / Nylon cable exit
- Connections:
- 2m PVC cable 90°
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- Nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
