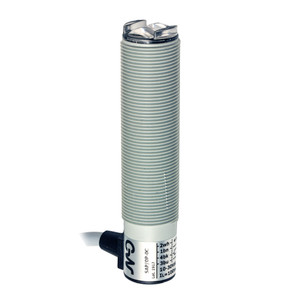

Datasensing SAT/0N-0C Sensors
Datasensing
$139.44
The Datasensing SAT/0N-0C Sensors are designed for precision and reliability in various industrial applications. These photoelectric sensors feature a diffuse focalization with an NPN plastic cable, offering a nominal sensing distance of 12mm. The sensors are equipped with a sensitivity adjustment trimmer, allowing for fine-tuning to suit specific needs. With a robust IP65 protection degree, they are safeguarded against electrical damage and environmental factors.
The sensors boast a double LED indicator for easy status monitoring, with green indicating power ON and yellow for status output. They offer a selectable NO/NC output function, ensuring versatility in different setups. The sensors operate efficiently within a voltage range of 10 to 30VDC, with a low no-load supply current of ?30mA and a load current capacity of ?100mA.
Engineered for durability, the sensors are housed in PBT with a nylon cable exit, and the active head is made of PMMA. They are designed to withstand operating temperatures from -25°C to +70°C without freezing, and they meet EMC compatibility standards (EN 60947-5-2). The sensors are also equipped with short-circuit and reverse polarity protection, ensuring long-term reliability.
With a compact design measuring 21.4mm x 89.8mm and weighing just 75g, these sensors are easy to integrate into existing systems. They come with supplied accessories, including M18 x 1 nuts, and offer a wide range of plugs, accessories, and reflectors for enhanced functionality. Approved by CE, the Datasensing SAT/0N-0C Sensors are a dependable choice for precise sensing needs.
- Nominal sensing distance:
- 12mm
- Thermal drift of Sr:
- 10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- NPN L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10µA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green (powerON), Yellow (Status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (660nm)
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Weight:
- 75g
- Housing Material:
- PBT / Nylon cable exit
- Connections:
- 2m PVC cable 90°
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- Nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
