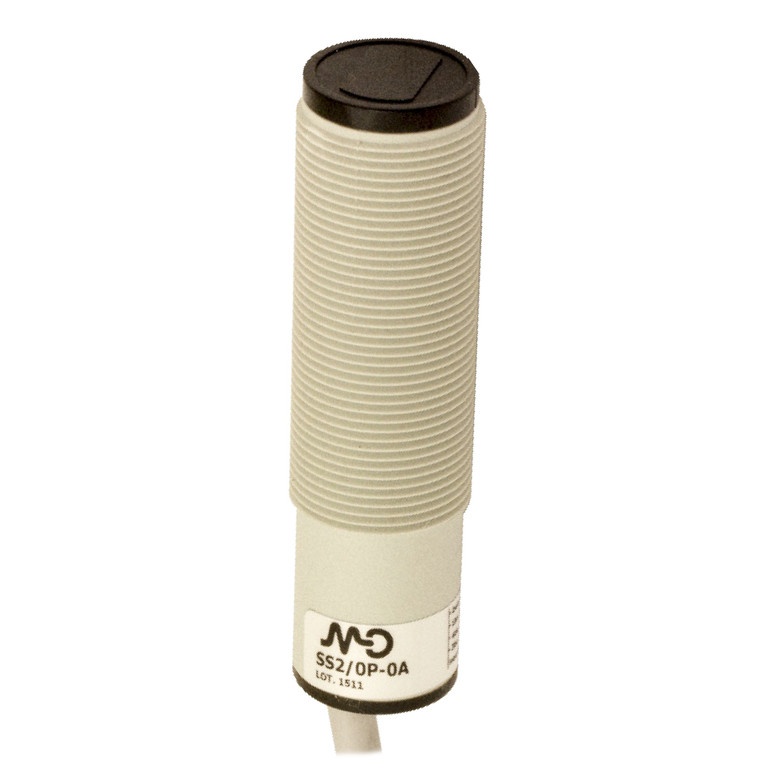

Datasensing SSD/0P-0A Sensors
Datasensing
$82.59
The Datasensing SSD/0P-0A Sensors are advanced photoelectric sensor receivers designed for precision and reliability. With a nominal sensing distance of 14 meters, these sensors feature a PNP L/D selectable output and an axial optic position, making them versatile for various applications. The sensors are equipped with a trimmer for sensitivity adjustment, ensuring optimal performance with a repeat accuracy of 5%. Operating on a voltage range of 10 to 30VDC, they offer a fast switching frequency of 250Hz and a quick response time of 2ms.
Built to withstand challenging environments, the sensors boast an IP67 protection degree, safeguarding against electrical damages and ensuring durability. They are CE and cULus listed, with additional ATEX models available upon request. The robust housing is made from PBT/PC with a PMMA active head, and the sensors come with a 2-meter PVC cable for easy installation. LED indicators provide clear status output, while features like short-circuit and reverse polarity protection enhance safety.
Designed to operate in temperatures ranging from -25°C to +70°C, these sensors are resistant to shocks and vibrations, complying with IEC standards. The package includes M18 x 1 nuts and a screwdriver for convenient setup. Ideal for industrial applications, the Datasensing SSD/0P-0A Sensors deliver reliable performance with minimal thermal drift and interference resistance, making them a dependable choice for your sensing needs.
- Nominal sensing distance:
- 14m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Receiver
- Emitter/Receiver:
- Receiver
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2,5V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 70g
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
