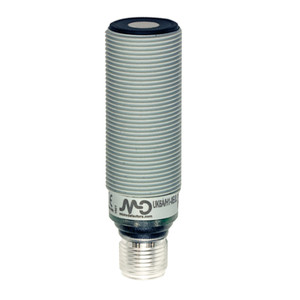

Datasensing UK6A/HN-0EUL Sensors

The Datasensing UK6A/HN-0EUL Sensors are advanced M18 diffuse reflection sensors designed for precision and reliability. With a nominal sensing distance of 300mm and a short housing, these sensors are ideal for applications requiring compact solutions. They feature both digital and analogue outputs, allowing for versatile integration into various systems. The sensors boast a thermal drift of Sr ?2%, repeat accuracy of 0.50%, and a beam angle of 7° ± 2°, ensuring high accuracy and performance. Equipped with a teach-in button for sensitivity adjustment, these sensors offer a resolution of ?2mm and a hysteresis of 1%. They are thermally compensated, ensuring consistent performance across a wide operating temperature range of -20°C to +70°C. The sensors have a minimum sensing distance (blind zone) of 40mm and a linearity error of just 1%. The UK6A/HN-0EUL Sensors operate on a voltage range of 10 - 30Vdc, with a no-load supply current of ?35mA at 30V. They support a load current of 100mA and have a leakage current of 10?A at 30Vcc. The output voltage drop is a maximum of 2.2V at IL=100mA, with a maximum ripple content of 5%. The sensors feature LED indicators for easy status monitoring: green for echo and yellow for output. Designed with robust PBT housing, these sensors are IP67 rated for mechanical protection, making them suitable for harsh environments. They include short-circuit, reverse polarity, and impulsive overvoltage protection for enhanced durability. The sensors come with M12 plug connections and are supplied with two M18x1 nuts and two Ø18 washers for easy installation. With CE cULus approvals and EMC compatibility per IEC 60947-5-2, these sensors meet high industry standards for safety and performance.
