DDLS 200/120.2-40-H
Availability:
Factory stock
$9,050.00
Condition:
New
Current Stock:
Description

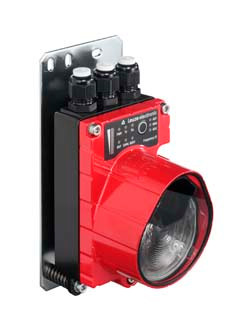

The Leuze DDLS 200/120.2-40-H is an optical data transmission receiver unit designed for contact-free, high-performance transfer of industrial bus protocols including DH+ and RIO from Rockwell Automation, with a working range of 200 to 120,000 mm and a usable transmitter opening angle of 1°. It features integrated heating for operation in temperatures down to -30°C, supply voltage of 18-30 VDC (current consumption approx. 800 mA at 24 VDC with heating), aluminum diecast housing with glass optics (IP65 protection per EN 60529), and pre-mounted on a mounting plate for straightforward installation. Typical applications include real-time capable, deterministic data transmission in harsh industrial environments such as manufacturing lines requiring robust, wear-free networking over extended distances, paired with a complementary .1 transmitter unit using frequency-offset arrangement. Documentation - Technical Datasheet: https://www.leuze.com/en/int/products/optical-data-transmission/ddls-200/DDLS-200-120-2-40-H-datasheet.pdf - Installation Instructions: https://www.leuze.com/en/int/products/optical-data-transmission/ddls-200/DDLS-200-120-2-40-H-manual.pdf - Product Catalog (DDLS 200 Series): https://www.leuze.com/en/int/products/optical-data-transmission/ddls-200/catalog.pdf - CAD Data: https://www.leuze.com/en/int/products/optical-data-transmission/ddls-200/DDLS-200-120-2-40-H-cad.zip
Additional Information
Series:
DDLS 200
Special version:
Heating,Not influenced by reflective surfaces,Operation of parallel light axes
Working range:
200 ... 120,000 mm
Light source:
LED, Infrared
Transmission frequency:
F2
Opening angle:
1 °
Supply voltage UB:
18 ... 30 V, DC
Number of digital switching outputs:
1 Piece(s)
Type:
Rockwell DH+/RIO
Transmission speed:
57.6 ... 230.4 kBit/s
Number of connections:
3 Piece(s)
No. of pins:
8 -pin
No. of pins:
6 -pin
Dimension (W x H x L):
89.25 mm x 196.5 mm x 111.8 mm
Housing material:
Metal
Net weight:
1,245 g
Type of display:
Bar graph,LED
Ambient temperature, operation:
-30 ... 50 °C
Ambient temperature, storage:
-30 ... 70 °C
Degree of protection:
IP 65
Approvals:
c UL US
Test procedure for EMC in accordance with standard:
EN 61000-6-2:2005,EN 61000-6-4:2001
Test procedure for noise in accordance with standard:
EN 60068-2-64
Test procedure for oscillation in accordance with standard:
EN 60068-2-6
Test procedure for shock in accordance with standard:
EN 60068-2-27,EN 60068-2-29
Customs tariff number:
84718000
ECLASS 5.1.4:
19039001
ECLASS 8.0:
19179090
ECLASS 9.0:
19179090
ECLASS 10.0:
19170506
ECLASS 11.0:
19170506
ECLASS 12.0:
19170506
ECLASS 13.0:
19170506
ECLASS 14.0:
19170506
ECLASS 15.0:
19170506
ETIM 5.0:
EC000515
ETIM 6.0:
EC000515
ETIM 7.0:
EC000515
ETIM 8.0:
EC000515
ETIM 9.0:
EC000515
ETIM 10.0:
EC000515
Datasheet:
View
Brochure:
View
Declaration of Conformity:
View
