Leuze DDLS 200/120.2-10-H Optical data transmission
Leuze
$4,848.00

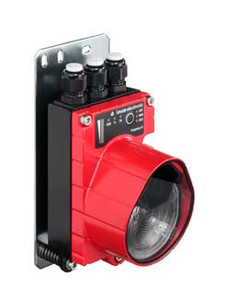

The Leuze DDLS 200/120.2-10-H is an optical data transmission system designed for reliable PROFIBUS DP communication over RS 485 at up to 1.5 Mbit/s, with a working range of 200 to 120,000 mm and a usable transmitter opening angle of 1°. It features integrated heating for operation down to -30°C (up to +50°C), an operating voltage of 1830 V DC, current consumption ?200 mA without heating (?800 mA with), and connection via terminals or M16/M12 options, including repeater functionality and baud rate adjustment. Dimensions are approximately 90 x 190 x 120 mm, with RoHS compliance and UL listing; suitable for industrial networking in harsh environments requiring electromagnetic immunity.
Documentation
- Technical Datasheet: https://www.leuze.com/en-us/ddls-200-120.2-10-h/50036287downloads
- Operating Instructions: https://www.leuze.com/en-us/ddls-200-120.2-10-h/50036287manuals
- Product Catalog (DDLS 200 Series): https://www.leuze.com/en-us/products/optical-data-transmission/ddls-200
- CAD Drawings: https://www.leuze.com/en-us/ddls-200-120.2-10-h/50036287cad
- Series:
- DDLS 200
- Special version:
- Heating,Not influenced by reflective surfaces,Operation of parallel light axes
- Working range:
- 200 ... 120,000 mm
- Light source:
- LED, Infrared
- Transmission frequency:
- F2
- Opening angle:
- 1 °
- Supply voltage UB:
- 18 ... 30 V, DC
- Number of digital switching inputs:
- 1 Piece(s)
- Number of digital switching outputs:
- 1 Piece(s)
- Type:
- PROFIBUS DP, RS 485
- Transmission speed:
- 0.0096 ... 1.5 Mbit/s
- Number of connections:
- 3 Piece(s)
- No. of pins:
- 8 -pin
- No. of pins:
- 6 -pin
- Dimension (W x H x L):
- 89.25 mm x 196.5 mm x 111.8 mm
- Housing material:
- Metal
- Net weight:
- 1,245 g
- Type of display:
- Bar graph,LED
- Ambient temperature, operation:
- -30 ... 50 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Degree of protection:
- IP 65
- Approvals:
- c UL US
- Test procedure for EMC in accordance with standard:
- EN 61000-6-2:2005,EN 61000-6-4:2001
- Test procedure for noise in accordance with standard:
- EN 60068-2-64
- Test procedure for oscillation in accordance with standard:
- EN 60068-2-6
- Test procedure for shock in accordance with standard:
- EN 60068-2-27,EN 60068-2-29
- Customs tariff number:
- 84718000
- ECLASS 5.1.4:
- 19039001
- ECLASS 8.0:
- 19179090
- ECLASS 9.0:
- 19179090
- ECLASS 10.0:
- 19170506
- ECLASS 11.0:
- 19170506
- ECLASS 12.0:
- 19170506
- ECLASS 13.0:
- 19170506
- ECLASS 14.0:
- 19170506
- ECLASS 15.0:
- 19170506
- ETIM 5.0:
- EC000515
- ETIM 6.0:
- EC000515
- ETIM 7.0:
- EC000515
- ETIM 8.0:
- EC000515
- ETIM 9.0:
- EC000515
- ETIM 10.0:
- EC000515
