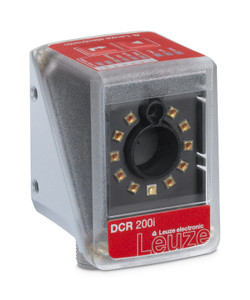

Leuze DCR 202i FIX-M1-102-R3-P Stationary 2D-code reader
Leuze
$3,247.00
The Leuze DCR 202i FIX-M1-102-R3-P is a stationary camera-based 2D code reader with medium-density M-optics, polarization filter, and 1280 x 960 pixel monochrome sensor resolution, optimized for reading 1D, stacked, and 2D codes (e.g., Code 128, EAN, ECC200, QR, GS1 DataBar) at distances of 50 to 220 mm with object speeds up to 7 m/s. It features a compact cubic design (43 x 61 x 44 mm), IP65 protection, 18-30 V DC supply (nominal 30 V), one digital input and one output (NPN, up to 100 mA), and interfaces including RS-232/RS-422 (4,800-115,200 Bd) via A-coded 12-pin M12 connector plus Ethernet via D-coded 4-pin M12, with integrated red LED illumination, green feedback LED, and webConfig tool for setup. Suitable for packaging machines, handling, and testing systems, it supports mounting via rear/side threads or optional brackets, polarity reversal/short-circuit protection, and operation from 0 to 50 °C.
Documentation
- Technical Datasheet: https://www.leuze.com/en-us/dcr-202i-fix-m1-102-r3-p/50128789
- Operating Instructions: https://www.leuze.com/en/download-center?product=50128789manuals
- Product Family Page: https://www.leuze.com/en-int/products/identification/stationary-1d-2d-code-readers/compact-scanner
- CAD Drawings: https://www.leuze.com/en/download-center?product=50128789cad
- Series:
- DCR 200i
- Chip:
- CMOS (Global Shutter)
- Special version:
- Polarization filter
- Software functions:
- Reading of 1D codes,Reading of 2D codes
- Code types, readable:
- 2/5 Interleaved,Aztec,Codabar,Code 32,Code 39,Code 93,Code 128,Data Matrix Code,EAN 8/13,EAN 128,GS1 Databar,GS1 Databar Omnidirectional,GS1 Databar QR code,GS1 Databar Stacked,PDF417,Pharma Code,QR code,UPC
- Reading distance:
- 50 ... 220 mm
- Light source:
- LED, Red
- Transmitted-signal shape:
- Pulsed
- Camera resolution, horizontal:
- 1,280 px
- Camera resolution, vertical:
- 960 px
- Modulus size:
- 0.19 ... 0.5 mm
- Electronic shutter speed:
- 0.068 ... 5 ms
- Camera type:
- Monochrome
- Protective circuit:
- Polarity reversal protection,Short circuit protected
- Supply voltage UB:
- 18 ... 30 V, DC
- Average power consumption:
- 8 W
- Number of digital switching inputs:
- 1 Piece(s)
- Type:
- Digital switching input
- Number of digital switching outputs:
- 1 Piece(s)
- Type:
- Digital switching output
- Switching current, max.:
- 100 mA
- Switching element:
- MOSFET semiconductor
- Switching principle:
- +24 V switching
- Number of inputs/outputs selectable:
- 2 Piece(s)
- Type:
- Inputs/outputs selectable
- Voltage type, outputs:
- DC
- Voltage type, inputs:
- DC
- Type:
- Ethernet, RS 232, RS 422
- Data bit:
- 8
- Stop bit:
- 1
- Parity:
- None
- Data bit:
- 7, 8 data bits
- Stop bit:
- 1, 2 stop bits
- Parity:
- Adjustable
- Architecture:
- Client,Server
- Address assignment:
- DHCP,Manual address assignment
- Transmission speed:
- 10 Mbit/s,100 Mbit/s
- Switch functionality:
- None
- Transmission protocol:
- TCP/IP , UDP
- Type:
- Ethernet
- Function:
- Service
- Number of connections:
- 2 Piece(s)
- Function:
- Data interface,Signal IN,Signal OUT,Voltage supply
- Type:
- Male
- No. of pins:
- 12 -pin
- Encoding:
- A-coded
- Function:
- Configuration interface,Data interface
- Type:
- Female
- No. of pins:
- 4 -pin
- Encoding:
- D-coded
- Design:
- Cubic
- Dimension (W x H x L):
- 43 mm x 61 mm x 44 mm
- Housing material:
- Metal,Plastic
- Metal housing:
- Diecast aluminum
- Plastic housing:
- PC
- Lens cover material:
- Glass with polarization filter
- Net weight:
- 120 g
- Housing color:
- Silver
- Type of fastening:
- Mounting thread,Via optional mounting device
- Type of display:
- LED
- Number of LEDs:
- 10 Piece(s)
- Type of configuration:
- Configuration codes,Teach-in,Via web browser
- Operational controls:
- Button(s)
- Function of the operational control:
- Adjustment mode,Auto-setup,Trigger
- Ambient temperature, operation:
- 0 ... 50 °C
- Ambient temperature, storage:
- -20 ... 70 °C
- Relative humidity (non-condensing):
- 90 %
- Degree of protection:
- IP 65
- Protection class:
- III
- Approvals:
- c UL US
- Test procedure for EMC in accordance with standard:
- EN 61000-6-2,EN 61000-6-4
- Test procedure for continuous shock in accordance with standard:
- IEC 60068-2-29, test Eb
- Test procedure for vibration in accordance with standard:
- IEC 60068-2-6, test Fc
- Customs tariff number:
- 84719000
- ECLASS 5.1.4:
- 27280103
- ECLASS 8.0:
- 27280103
- ECLASS 9.0:
- 27280103
- ECLASS 10.0:
- 27280103
- ECLASS 11.0:
- 27280103
- ECLASS 12.0:
- 27280103
- ECLASS 13.0:
- 27280103
- ECLASS 14.0:
- 27280103
- ECLASS 15.0:
- 27280103
- ETIM 5.0:
- EC002550
- ETIM 6.0:
- EC002999
- ETIM 7.0:
- EC002999
- ETIM 8.0:
- EC002999
- ETIM 9.0:
- EC002999
- ETIM 10.0:
- EC002999
