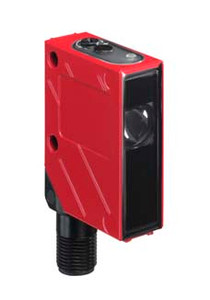

Leuze LRT 8/24.04-100-S12 Luminescence sensor
Leuze
$1,027.07
LRT 8/24.04-100-S12 Luminescence sensor
- Series:
- 8
- Application:
- Detection of any kind of luminescence,Detection of white paper
- Special version:
- Autocollimation
- Operating range:
- Guaranteed operating range
- Operating range, white paper: 10 x 10 mm:
- 0 ... 0.1 m
- Operating range, white paper: 20 x 20 mm:
- 0 ... 0.15 m
- Operating range, white paper: 50 x 50 mm:
- 0 ... 0.22 m
- Operating range limit:
- 0 ... 0.3 m
- Operating range limit:
- Typical operating range
- Light source:
- LED, UV
- Light spot size [at sensor distance]:
- 22 mm [100 mm]
- Receive filter:
- 400 ... 750 nm
- Type of light spot geometry:
- Round
- Protective circuit:
- Polarity reversal protection,Short circuit protected
- Supply voltage UB:
- 10 ... 30 V, DC
- Residual ripple:
- 0 ... 15 %, From UB
- Open-circuit current:
- 0 ... 35 mA
- Number of L/D changeover inputs:
- 1 Piece(s)
- Switching voltage high, min.:
- UB
- Switching voltage low, max.:
- 0 V or not connected
- L/D changeover inputs, delay:
- 0.5 ms
- Number of digital switching outputs:
- 2 Piece(s)
- Switching current, max.:
- 100 mA
- Switching voltage:
- high: ?(UB-2V),low: ? 2 V
- Switching element:
- Transistor, PNP
- Switching element:
- Transistor, NPN
- Switching frequency:
- 1,500 Hz
- Number of connections:
- 1 Piece(s)
- Type of connection:
- Connector
- Thread size:
- M12
- Type:
- Male
- Material:
- Metal
- No. of pins:
- 5 -pin
- Encoding:
- A-coded
- Design:
- Cubic
- Dimension (W x H x L):
- 15 mm x 48 mm x 38 mm
- Housing material:
- Metal
- Metal housing:
- Zinc
- Lens cover material:
- Glass
- Net weight:
- 70 g
- Housing color:
- Red, RAL 3000
- Compatibility of materials:
- ECOLAB
- Type of display:
- LED
- Operational controls:
- Multiturn potentiometer
- Ambient temperature, operation:
- -20 ... 60 °C
- Degree of protection:
- IP 67
- Protection class:
- II
- Standards applied:
- IEC 60947-5-2
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27270908
- ECLASS 8.0:
- 27270908
- ECLASS 9.0:
- 27270908
- ECLASS 10.0:
- 27270908
- ECLASS 11.0:
- 27270908
- ECLASS 12.0:
- 27270908
- ECLASS 13.0:
- 27270908
- ECLASS 14.0:
- 27270908
- ECLASS 15.0:
- 27270908
- ETIM 5.0:
- EC001822
- ETIM 6.0:
- EC001822
- ETIM 7.0:
- EC001822
- ETIM 8.0:
- EC001822
- ETIM 9.0:
- EC001822
- ETIM 10.0:
- EC001822
- Datasheet:
- View
- Declaration of Conformity:
- View
