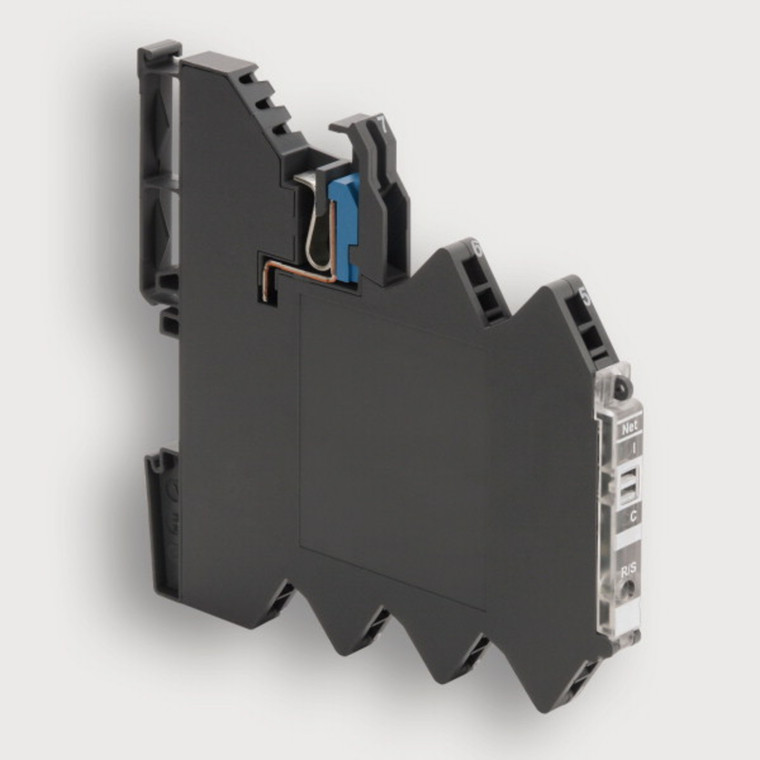

Description
Technical Data
Input
Type of function
1-channel 1 pin switching
Rated voltage UN
DC 12/24 V
Operation voltage range
DC 11??30 V
Input voltage range
10??30 V
Rated current IN
DC 5 A
Supply current
DC 40 A over Cu-rails 10 ?? 3 mm
Reverse voltage protection
internal electronics
Connection type input
screwless contact slide
Control input (Set / Reset)
Signal level
DC 12/24 V acc. to IEC 61131-2
OFF
Pulse with falling edge >100 ms, <800 ms
ON
Pulse with falling edge > 1 s
Output
Switching element
MOSFET
Output current
max. DC 10 A
Power output
limited to <100 W
Voltage drop
<170 mV (10 A)
Status display output
- LED green: operating voltage present, no error
- LED red: error in load circuit
Switch-on capacity
4700 ???F
Current range
0.5 A ?? 4 A (can be set via switch in 0.5 A steps)
Characteristic
fast (1), medium (2), slow 1 (3) see 'Characteristic curves'
Current limitation
<5 A
Signal output
Signal level
- DC 24 V: operating voltage on standby, no error,
- DC 0 V: error, output switched off and manual "OFF"
Switching element
Transistor, collector with pull-up resistance
General
Operation temperature range
-25 ???C ?? +50 ???C
Storage temperature range
-40???C??85???C
Dimensions (w ?? h ?? d)
8,1??114,5??116 mm
Housing material
PA 6.6 (UL 94 V-0, NFF I2, F2)
Color of the housing
basalt grey
Mounting
- DIN rail mountable TS35
- (EN 60715)
MTBF
690000 h
Protection class
IP20
Installation position
any
Connection type
- Spring terminal
- 0.25 mm2 ?? 2.5 mm2
Weight
0,12 kg/piece
Approvals
- cULus (E135145)
- GL in preparation
- NEC Class 2 (E490188)
- UL 61010-1
- UL 61010-2-201 (E170585)
Standards
- EN 60950-1
- EN 61131-1, 2
- EN 61000
- EN 60947-4-1
- EN 55022
PU
1 piece
Dimensions
PIN assignment
1: Characteristic fast
2: Characteristic medium
3: Characteristic slow-1
Signal output
Accessories
- 0 V collective terminal, white: Part.-No. 716420 | LOCC-Box-SK 7-6420 | PU: 2 units
- Intermediate feed-in terminal: Part.-No. 716421 | LOCC-Box-EKL 7-6421 | PU: 2 units
- Distance terminal without contact: Part.-No. 716422 | LOCC-Box-DKL 7-6422 | PU: 2 units
- Empty housing without terminals: Part.-No. 716424 | LOCC-Box-DY 7-6424 | PU: 2 units
- Supply set 10 mm??«: Part.-No. 716425 | LOCC-Box-ES 7-6425 | PU: 1 unit
- Supply set 16 mm??«: Part.-No. 716447 | LOCC-Box-ES16 7-6447 | PU: 1 unit
- Jumper comb 8-pin, white: Part.-No. 716428 | LOCC-Box-BKW 7-6428 | PU: 5 units
- Jumper comb 8-pin, red: Part.-No. 716429 | LOCC-Box-BKR 7-6429 | PU: 5 units
- Jumper comb 8-pin, blue: Part.-No. 716430 | LOCC-Box-BKB 7-6430 | PU: 5 units
- Jumper comb 16-pin, white: Part.-No. 716438 | LOCC-Box-BKW 7-6438 | PU: 5 units
- Jumper comb 16-pin, red: Part.-No. 716439 | LOCC-Box-BKR 7-6439 | PU: 5 units
- Jumper comb 16-pin, blue: Part.-No. 716440 | LOCC-Box-BKB 7-6440 | PU: 5 units
- Labelling sign 5??5 mm, white: Part.-No. 716431 | LOCC-Box-BZW 7-6431 | PU: 1 unit
- Labelling sign 5??5 mm, red: Part.-No. 716432 | LOCC-Box-BZR 7-6432 | PU: 1 unit
- Labelling sign 5??5 mm, blue: Part.-No. 716433 | LOCC-Box-BZB 7-6433 | PU: 1 unit
- Labelling sign 5??5 mm, yellow: Part.-No. 716434 | LOCC-Box-BZG 7-6434 | PU: 1 unit
- Tag holder, white: Part.-No. 716443 | LOCC-Box-BZT 7-6443 | PU: 20 units
- Cover for tag holder, transparent: Part.-No. 716444 | LOCC-Box-BAD 7-6444 | PU: 20 units
- Material name, white: Part.-No. 716445 | LOCC-Box-LEB 7-6445 | PU: 10 units
- Material name, white: Part.-No. 716446 | LOCC-Box-BZW 7-6446 | PU: 1 unit
- CU rail 10??3 mm: Part.-No. 716426 | LOCC-Box-CU 7-6426 | PU: 1 unit
- CU rail cover, grey: Part.-No. 716427 | LOCC-Box-AD 7-6427 | PU: 1 unit
