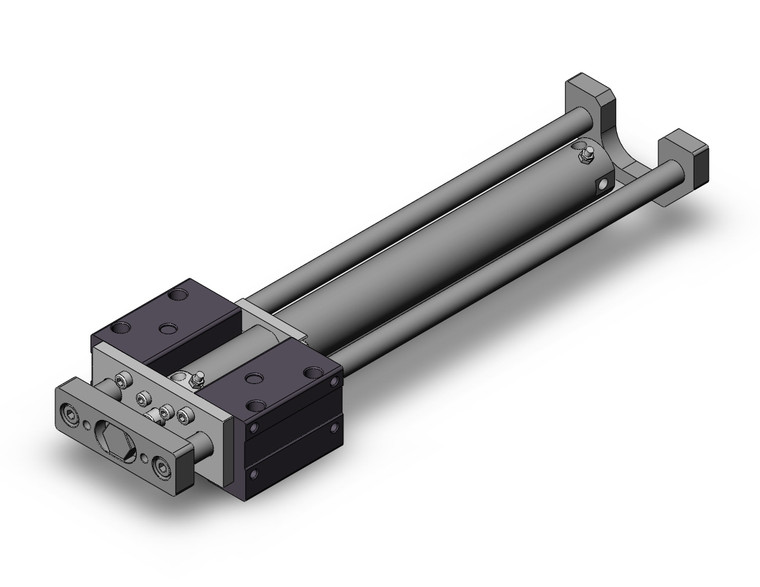

SMC MGCLB32-300-R Mgc, Guide Cylinder

SMC MGCLB32-300-R MGC Series Guide Cylinder Compact Type

SMC
SKU:
MGCLB32-300-R
Availability:
Factory stock
$420.15
Condition:
New
Current Stock:
Description

SMC MGCLB32-300-R - MGC Series Compact Guide Cylinder, Ball Bushing, 32mm Bore, 300mm Stroke, Rubber Bumper

The SMC MGCLB32-300-R adds a rubber bumper (-R) to the proven 32mm bore, 300mm stroke MGC Series compact guided cylinder. This configuration provides controlled deceleration at end of stroke, making it ideal for high-cycle processes where impact protection matters.

Key Features & Specifications

  • Rubber bumper (-R) - controlled end-of-stroke contact protects tooling and workpieces
  • 32mm bore / 300mm stroke - strong, extended-reach guided actuation
  • Ball bushing (L-type) - low-friction, precision-guided linear motion
  • External guide rod isolation - protects seals from side loading for long service intervals
  • Standard air cushions - absorb impact energy at end of stroke
  • Bore Size: 32mm | Stroke: 300mm | Rear Plate (B) Mount | Rubber Bumper

Typical Applications

Engineered for high-duty-cycle manufacturing automation, including stamping feed, transfer conveyors, and guided insertion processes requiring cushioned end-stop performance.

Manufactured by SMC Corporation.

Additional Information
Type:
None
Bearing Type:
Ball Bushing Bearing
Mounting Style:
Basic Style
Bore Size:
Bore Size 32 mm
Port Thread Type:
M5X0.8,Rc
Cylinder Stroke:
Standard Stroke 300 mm
Stroke Adjustment Symbol:
None
Dual Stroke Mark:
Without Two Stroke Mark
Cylinder Stroke 2:
Without Cylinder Stroke 2
Rear Plate:
With rear plate
Auto Switch:
Without Auto Switch
Number Of Auto Switches:
2 pcs. Or None
Auto Switch Mounting Bracket:
None
Made To Order:
Standard
