SMC MGCLB32-300 MGC Series Guide Cylinder Compact Type
SMC
$389.85

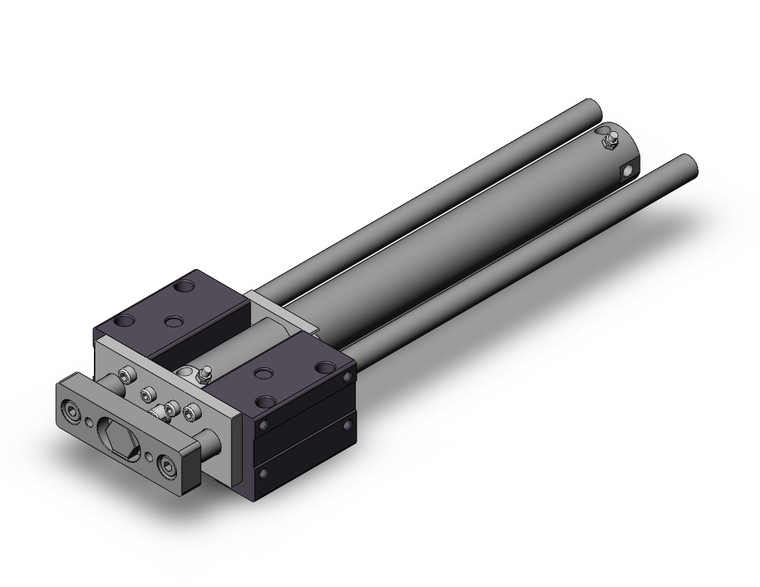

SMC MGCLB32-300 - MGC Series Compact Guide Cylinder, Ball Bushing, 32mm Bore, 300mm Stroke
The SMC MGCLB32-300 offers a 32mm bore and 300mm stroke in the MGC Series compact external guided configuration. With ball bushing bearings providing smooth, repeatable travel, this actuator is a reliable solution for applications requiring both force and reach.
Key Features & Specifications
- 300mm stroke - extended travel for the 32mm bore class in a compact guided package
- Ball bushing bearings - smooth, precision-guided linear actuation with consistent resistance
- External guide rods - separate load-bearing function from piston rod seals
- Air cushions as standard - kinetic energy absorption for reliable end-of-stroke performance
- Non-rotating accuracy: ±0.05° (32mm bore)
- Bore Size: 32mm | Stroke: 300mm | Rear Plate (B) Mount
Typical Applications
Well-suited for multi-station transfers, automated loading operations, and guided part insertion requiring higher force output with extended guided stroke in production equipment.
Manufactured by SMC Corporation.
- Type:
- None
- Bearing Type:
- Ball Bushing Bearing
- Mounting Style:
- Basic Style
- Bore Size:
- Bore Size 32 mm
- Port Thread Type:
- M5X0.8,Rc
- Cylinder Stroke:
- Standard Stroke 300 mm
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Rear Plate:
- Without rear plate
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Auto Switch Mounting Bracket:
- None
- Made To Order:
- Standard
