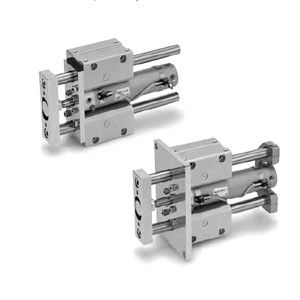

SMC MGCLB50-200 MGC Series Guide Cylinder Compact Type
SMC
$614.80
SMC MGCLB50-200 - MGC Series Compact Guide Cylinder, Ball Bushing, 50mm Bore, 200mm Stroke
The SMC MGCLB50-200 is the largest bore option in the MGC Series compact external guided cylinder lineup, delivering maximum pneumatic force with a 50mm bore and 200mm stroke. Ball bushing bearings and external guide rods ensure precise, stable guided motion for heavy industrial payloads.
Key Features & Specifications
- 50mm bore - maximum available force output in the MGC compact guided series
- Ball bushing (L-type) bearings - smooth, low-friction guidance with stable travel resistance
- External guide rods - full lateral load isolation from piston rod seals
- Air cushions standard - end-of-stroke kinetic energy absorption
- Non-rotating accuracy: ±0.04° for 50mm bore - highest precision in the MGC range
- Bore Size: 50mm | Stroke: 200mm | Rear Plate (B) Mount
Typical Applications
Engineered for high-force guided pressing, heavy-payload lifting, and robust transfer applications in automotive, metalworking, and heavy manufacturing automation.
Manufactured by SMC Corporation.
- Type:
- None
- Bearing Type:
- Ball Bushing Bearing
- Mounting Style:
- Basic Style
- Bore Size:
- Bore Size 50 mm
- Port Thread Type:
- M5X0.8,Rc
- Cylinder Stroke:
- Standard Stroke 200 mm
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Rear Plate:
- Without rear plate
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Auto Switch Mounting Bracket:
- None
- Made To Order:
- Standard
