Description

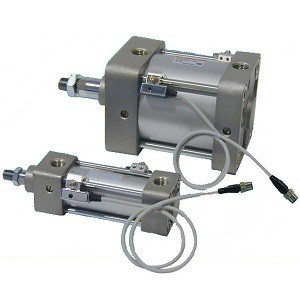

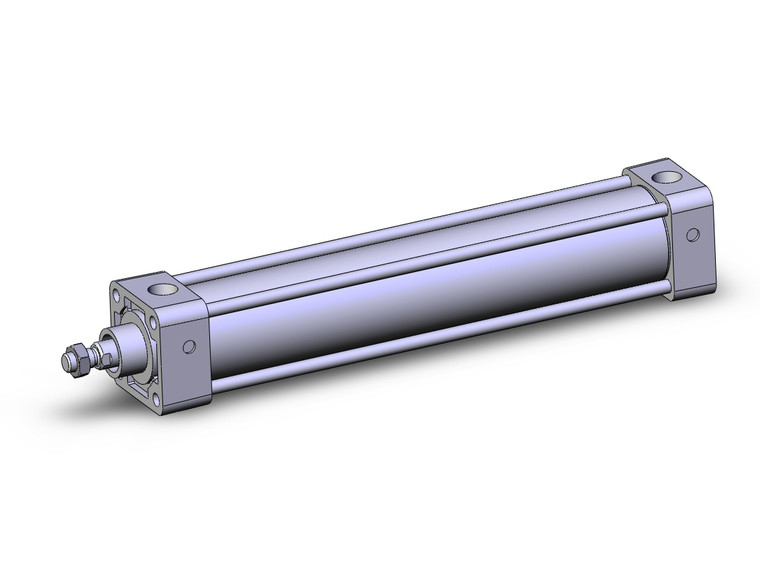

series nca1 medium duty tie rod cylinders are nfpa interchangeable, have a crimped piston rod assembly, are pre-lubricated and available in 11 mounting styles. bore sizes range from 1.5 to 4 inches. the nca1 expanded line of medium duty cylinders offer bore sizes ranging from 5 to 8 inches, and come standard with adjustable air cushion.
- 5in. bore medium duty air cylinder
- 11 nfpa mounting options
- standard with adjustable air cushion
- auto switch capable
Additional Information
Magnet: |
D (Built-in) |
Mounting: |
B (MX0, Basic) |
Bore Size: |
200 (2") |
Stroke: |
1000 (10") |
Air Cushion / Rod Boot: |
Both Ends (Air Cushion) |
Adjustment Range: |
Not Applicable |
Auto Switch: |
No Switch |
Lead Wire or Prewired Connector: |
0.5m (Or None in the Case of No Switch) |
Number: |
2 pcs. (Or None in the Case of No Switch) |
X Option: |
None |
