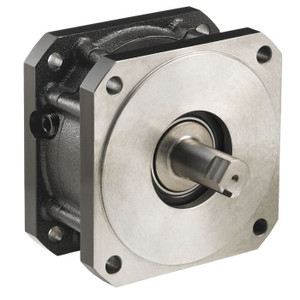

SBP/SBE - Eclipse Servo Brakes SBP9-38.0-080-180-14.5-215-038-NO-S
View AllClose
| Features: | "Spring Engaged, Zero Backlash, Low Inertia, 20-50% More Torque Than Competition" |
| Comments: | Includes Quick Exhaust Valve For Improved Engagement Response |
| Comments: | Order Control Valve From Accessories To The Left |
| Input Frame Size: | NA |
| Output Frame Size: | NA |
| Open Or Enclosed Design: | Enclosed |
| Input Bore Maximum Insertion: | 83.3 mm |
| Input Keyway: | None |
| Bore Style: | Straight Bore/Shaft |
| Width: | 214 .0 mm |
| Minimum Static Brake Torque: | 50 Nm |
| Backlash: | 0.00 ArcSec |
| Overhung Load Capacity: | None |
| Shaft Inertia: | 0.08160 kgm² |
| Max Rpm: | "5,000" |
| Output Shaft Diameter: | 38 mm |
| Output Shaft Length: | 80 mm |
| Output Keyway: | 10W x 8H mm |
| Output Shaft Features: | 2 Flats @ 180° |
| Input Bolt Circle: | 215 mm |
| Minimum Input Bolt Circle: | 215 mm |
| Maximum Input Bolt Circle: | 215 mm |
| Input Pilot O.D.: | 180 mm |
| Output Bolt Circle: | 215 mm |
| Minimum Output Bolt Circle: | 215 mm |
| Static b10/b10d Cycle Life: | "1,000,000/2,000,000" |
| Maximum Output Bolt Circle: | 215 mm |
| Output Pilot O.D.: | 180 mm |
| Actuation/Return: | Spring/Air |
| Port Size: | 0.125 NPT |
| Maximum Operating Pressure: | 8.3 bar |
| Minimum Release Pressure: | 2.2 bar |
| Temperature Range: | 32 - 150 °F |
| Approximate Engagement Response Time: | 85 ms |
| Approximate Release Response Time: | 145 ms |
| Torsional Rigidity: | 102733 Nm/Rad |
| Air Chamber Volume: | 48.834 cc |
| Ratings: | "IP67, CE, And RoHS" |
| Finish: | Black Acrylic Paint |
| Restrictions: | Not Recommended For Cyclic Dynamic Braking |
| Shipping Weight: | .0 |
