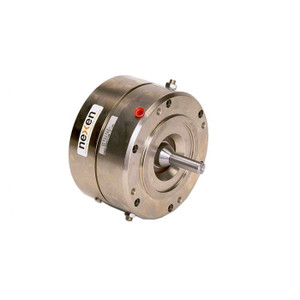

EMB - Motor Brakes EMB-1125 MOTOR BRAKE 182/184
View AllClose
| Comments: | "Recommended For Cyclic Braking, Holding, And E-Stop Applications" |
| Input Frame Size: | "182TC, 184TC" |
| Output Frame Size: | "182TC, 184TC" |
| Open Or Enclosed Design: | Enclosed |
| Input Bore Maximum Insertion: | 3.39 in. |
| Input Keyway: | 0.251 in. |
| Bore Style: | Straight Bore/Shaft |
| Minimum Static Brake Torque: | 660 inlbs |
| Maximum Brake Continuous Thermal Dissipation: | 0.30 hp |
| Brake Heat Sink Capacity: | 69630 ftlb |
| Brake Peak Thermal Input Rate: | 10.00 hp |
| Overhung Load Capacity: | None |
| Shaft Inertia: | 13.33 lbin² |
| Max Rpm: | 5000 |
| Output Shaft Diameter: | 1.125 in. |
| Output Shaft Length: | 2.89 in. |
| Output Keyway: | 0.251 in. |
| Input Bolt Circle: | 7.250 in. |
| Input Bolt Hole Size: | 0.531 in. |
| Input Pilot O.D.: | 8.501 in. |
| Output Bolt Circle: | 7.250 in. |
| Output Bolt Hole Size: | 0.500-13 in. 4 @ 90° |
| Output Pilot O.D.: | 8.500 in. |
| Actuation/Return: | Spring/Air |
| Port Size: | 0.125 NPT |
| Maximum Operating Pressure: | 120 psi |
| Minimum Release Pressure: | 48 psi |
| Temperature Range: | 32 - 150 °F |
| Approximate Engagement Response Time: | 30 ms |
| Approximate Brake Facing Life: | 55 hphr |
| Brake Air Chamber Volume When New: | 0.634 in³ |
| Brake Air Chamber Volume When Worn Out: | 0.037 in³ |
| Ratings: | "CE, And RoHS" |
| Finish: | Black Acrylic Paint |
| Shipping Weight: | 41.2 LB |
