Pfannenberg

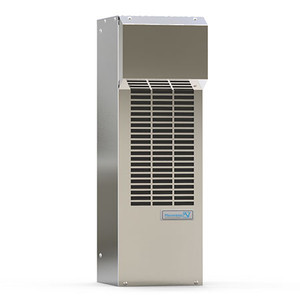

Pfannenberg Dts 3181 Washdown Enclosure Cooling Unit

(No reviews yet) Write a Review
SKU:
13385436158
Condition:
New
Cooling Capacity (Btu/h):
3000-4000
Mounting Style:
Side Mount
Color:
304 Stainless Steel
Material:
Stainless Steel
Environmental Protection Standard:
Type 3R/4
Voltages:
400/460 V
Voltage Tolerance:
?? 10%
Frequency (Hz):
50/60Hz
Power Consumption (W):
1200
Nominal (Run) Current (@35A/35A):
2.25
Fuse (max.) Class CC:
4
Max Noise Level dB(A):
70
Approvals:
UL, cUL, CE, (on request: GOST)
Width (in):
15.55
Height (in):
Width (in)=15.55""
Depth (in):
9.3
Minimum Ambient Temperature (??F / ??C):
32??F / 0??C
Maximum Ambient Temperature (??F / ??C):
131??F / 55??C
Control Range (adjustable) SC:
+ 77??F ?à + 113??F / + 25??C ?à + 45??C; factory setting + 95??F / + 35??C
Refrigerant (Type/Quantity):
R134a/400g
Condensate Management:
active condensate evaporation system with safety overflow
  • Pfannenberg DTS 3181 Washdown Enclosure Cooling Unit
  • Pfannenberg DTS 3181 Washdown Enclosure Cooling Unit
  • Pfannenberg DTS 3181 Washdown Enclosure Cooling Unit
$7,100.00

Description

DTS 3181 Type 3R/4 Side Mount AC / Cooling Unit - 400/460 V, 3000-4000 Btu/h, 304 Stainless Steel


American Made
Designed with a long internal air path to capture heat above the components and provide cool air below
Single bearing fan design provides long lasting, high airflow vs typical two bearing designs
Closed loop design that isolates contaminated external ambient air from the internally conditioned air
Thermal overload protection for increased operating life of the compressor
Pressure overload protection safely shuts off the compressor in the event of excessive pressure
Environmentally friendly with R134a refrigerant versus a blended refrigerant for easier service and minimized negative impact to the environment
Greater efficiency and less maintenance due to the condensor's wide fin spacing filterless design
Active condensate management boils off condensate in a heated condensate collection pan
Hermetically sealed compressor never needs recharging
Outdoor and washdown units have a special coating for superior corrosion protection especially with salt water, sour gas & other corrosive gases
Thermal expansion valve provides efficient performance over the entire operating temperature range by regulating the flow of refrigerant
ERP efficiency certified
High ambient cooling performance in environments where the maximum ambient temperature is 131?? F
Rugged Design

Industrial automation enclosures, Electrical control cabinet, Pump panel, Standalone data rack,
