Pfannenberg Eco Eb65 Inverter Type Air Cooled Water Chiller
(No reviews yet)
Write a Review
- SKU:
- 42030655006
- Condition:
- New
- Cooling Capacity (Btu/h):
- 22178
- Cooling Capacity (kW):
- 6.5
- COOLING CAPACITY (Tons):
- 1.84816666666667
- Location:
- Outdoor
- Color:
- RAL 7035 (Light Grey)
- Material:
- Powder Coated Steel
- Environmental Protection Standard:
- IP 55
- Voltages:
- 400/460 VAC
- Voltage Tolerance:
- ??10%
- Frequency (Hz):
- 50|60
- Power Consumption (W):
- 4100 | 5000
- Nominal (Run) Current (@35A/35A):
- 6.8 | 7.5
- Fuse (max.) Class CC:
- 12
- Max Noise Level dB(A):
- 72
- Approvals:
- UL 508A, CE, EAC
- Dry Weight (lbs):
- 419
- Width (in):
- 33.68
- Height (in):
- 60.4
- Depth (in):
- 29.96
- Minimum Ambient Temperature (??F / ??C):
- 14/-10
- Maximum Ambient Temperature (??F / ??C):
- 113/45
- Tank Volume (Gal):
- 13
- Coolant Connections (NPT-F):
- 3/4"
Description
EB 65 ECO WT UL CUS
Variable Speed
Outdoor
Stand Alone Water/Glycol Chiller
View AllClose
Variable Speed
Outdoor
Stand Alone Water/Glycol Chiller
Outdoor
Variable Speed
UL508A
CE
Medium Frame
Standalone
digital controller
Typical Applications: Liquid Cooling, Air to water heat exchanger, CNC Machine/Machine Tool,Industrial automation enclosures, Electrical control cabinet, Pump panel, Standalone data rack,
Related Products

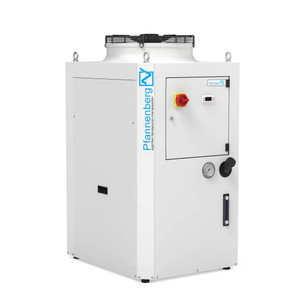

Pfannenberg Eco Eb95 Inverter Type Air Cooled Water Chiller
