Pfannenberg Pa 10-Ssm 24V Sounder 110 Db 10-60 Vdc Rd Housing Rd Lens

(No reviews yet) Write a Review
SKU:
23360800005
Condition:
New
$811.60

Description

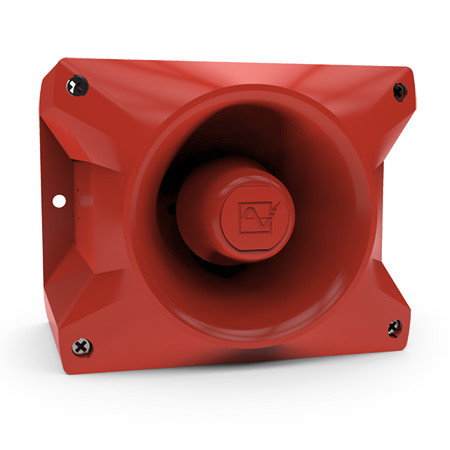

PA 10-SSM 24V Sounder 110 dB 10-60 VDC RD housing RD lens
117 dB (A) nominal sound pressure level
80 alarm tones with 4 stages
Soft Start Module
Emit different tones based on alarm circumstances
Internal volume control
Polycarbonate/ABS blend housing
UL Type 4/4X, IP 66 ingress
Certifications: UL, cUL, MED, CE, VdS, GL, EN 54-3
10 Year Warranty
View AllClose

Additional Information

MOUNTING STYLE:
Surface or Flush
MATERIAL:
Polycarbonate/ABS blend housing
ENVIRONMENTAL PROTECTION STANDARD:
Type 4/4X, IP 66
OPERATING VOLTAGE RANGE:
10-60 VDC
Max Decible @ 1m:
117 dB
Coverage Area @ 80dB Ambient:
41,520 sq ft
Coverage Area @ 90dB Ambient:
4,170 sq ft
APPROVALS:
UL, cUL, CE, VdS, EN 54-23
WEIGHT (lbs):
2.755
Width (in):
8.42
Height (in):
6.7
Depth (in):
6.14
MINIMUM OPERATING TEMPERATURE (??C):
-40
MAXIMUM OPERATING TEMPERATURE ( ??C):
55
View AllClose
