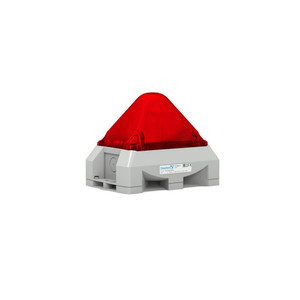

Pfannenberg Py X-La-15 24V Combo Sound/Flash Light 15J 103 Db ,18-30Vdc Gry Housing Rd Lens

(No reviews yet) Write a Review
SKU:
21565805055
Condition:
New
MOUNTING STYLE:
Surface Mount
BASE COLOR:
RAL 7035
LENS COLOR:
RED
MATERIAL:
Polycarbonate/ABS blend
ENVIRONMENTAL PROTECTION STANDARD:
IP 66 / UL Type 4/4x
OPERATING VOLTAGE RANGE:
18-30 VDC
BULB TYPE:
Xenon
FLASH ENERGY:
15 J
FLASH RATE:
168 Hz = 60 flashes/min
Max decible output @ 1m:
103 dB
Coverage Area @ 80dB Ambient:
500 sq ft
Coverage Area @ 90dB Ambient:
54 sq ft
SERVICE LIFE OF LIGHT SOURCE:
8,000,000 Flashes until 70%
APPROVALS:
UL, cUL, EAC, VDS, EN 54-170
WEIGHT (lbs):
1.27832
Width (in):
5.66
Height (in):
8.5
Depth (in):
6.77
MINIMUM OPERATING TEMPERATURE (??C):
-40
MAXIMUM OPERATING TEMPERATURE ( ??C):
55
$653.03

Description

PY X-LA-15 24V Combo Sound/Flash Light 15J 103 dB ,18-30VDC GRY housing RD lens
Exclusive Pfannenberg xenon flash technology
Selectable flash frequency and synchronized flash
Easy and safe installation design for failure free mounting in shortest time
Option: control input to activate flash, direct control via PLC
Polycarbonate/ABS blend housing
tones are selectable and sound level is reducible by ?û20 dB for adaption to any industry and environment
UL Type 4/4X, IP 66 ingress protection
Certifications: UL, CE, cUL
