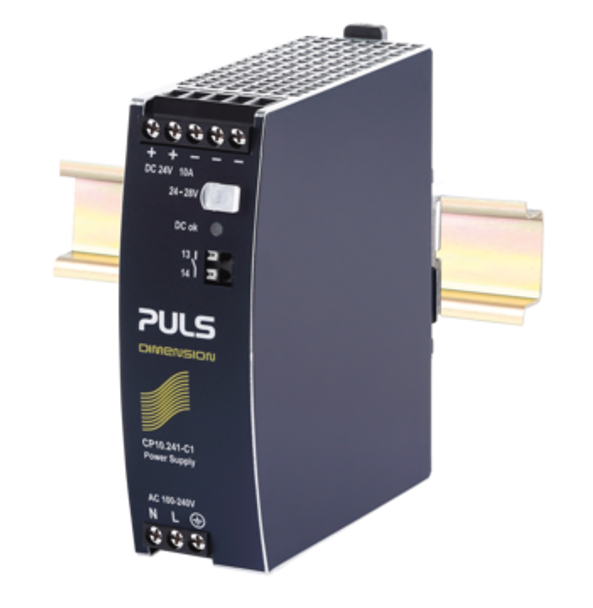

PULS CP10.241-C1 Power Supply, 240W, 100-240VAC 1PH, 24-28VDC, 10-8.6A with Conformal Coating

(No reviews yet) Write a Review
SKU:
CP10.241-C1
Availability:
In stock. Allow one business day to ship.
On Sale
  • PULS CP10.241-C1 Power Supply, 240W, 100-240VAC 1PH, 24-28VDC, 10-8.6A with Conformal Coating
  • PULS CP10.241-C1 Power Supply, 240W, 100-240VAC 1PH, 24-28VDC, 10-8.6A with Conformal Coating
Now: $360.00
Was: $400.00

Description

Power Supply, 240W, 100-240VAC 1PH, 24-28VDC, 10-8.6A with Conformal Coating

DIN-rail power supplies for 1-phase systems
24V, 10A

  • AC 100-240V wide-range input
  • Width only 39mm
  • Efficiency up to 95.2%
  • Excellent partial load efficiency
  • 20% output power reserves
  • Safe HiccupPLUS overload mode
  • Easy fuse breaking due to high overload peak current
  • Active power factor correction (PFC)
  • Minimal inrush current surge
  • Full power between -25°C and +60°C
  • DC-OK relay contact
  • Conformal coated
DC Output 24-28Vdc
  10-8.6A
  240W
Input AC 100-240V  (± 15%)
  DC 110V-150V  (± 20%)
Size (WxHxD) 39 x 124 x 117mm
Weight 600g
Order information Stock Item
View AllClose

Additional Information

OUTPUT:
24V, 10A
RANGE:
24-28Vdc
POWER:
240W
INPUT:
AC 100-240V (± 15%) DC 110V-150V (± 20%)
Other:
Conformal Coated
