SMC RSG40F-30D RSG Stopper Cylinder, Adjustable Mounting Height, 40mm Bore, 30mm Stroke, Double Acting, Round Bar
SMC
$108.10

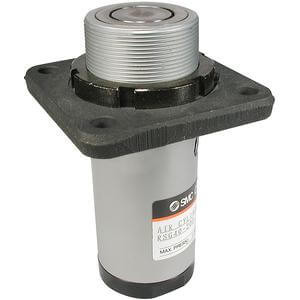

SMC RSG40F-30D RSG Adjustable Mounting Height Stopper Cylinder
The SMC RSG40F-30D is a adjustable mounting height RSG stopper cylinder with a 40mm bore, 30mm stroke, double acting operation, and a round bar rod end. Stopper cylinders rise into the path of a conveyor to stop and position workpieces or pallets, then retract to release them.
Specifications
| Series | RSG |
| Type | Adjustable Mounting Height Stopper Cylinder |
| Bore Size | 40mm |
| Stroke | 30mm |
| Action | Double Acting |
| Rod End | Round Bar |
| Port Thread | Built-in One-Touch Fitting |
| Weight | 2.51 lb |

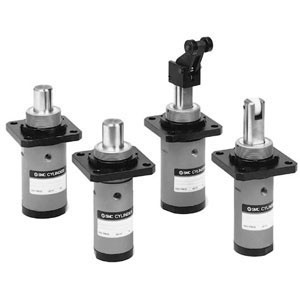

RSG Series Highlights
- Mounting height can be raised or lowered to suit the distance to the workpiece
- Round bar, chamfered, roller, and lever rod end styles
- Double acting and single acting versions
- Auto switch capable on RSDG models (built-in magnet)
Need help confirming a part number, auto switch, or replacement? Contact Automation Distribution and our team will help.
- Series:
- RSG
- Bore Size:
- 40mm
- Cylinder Stroke:
- 30mm
- Action:
- Double Acting
- Piston rod end type:
- Round Bar
- Mounting Style:
- Flange (Adjustable Height)
- Port Thread Type:
- Built-in One-Touch Fitting
- With Auto Switch(Built-in Magnet):
- No
- Auto Switch:
- None
- Number Of Auto Switches:
- None
- Mounting Bolt:
- None
- Made To Order:
- Standard
- Auto Switch Mounting Bracket:
- None
