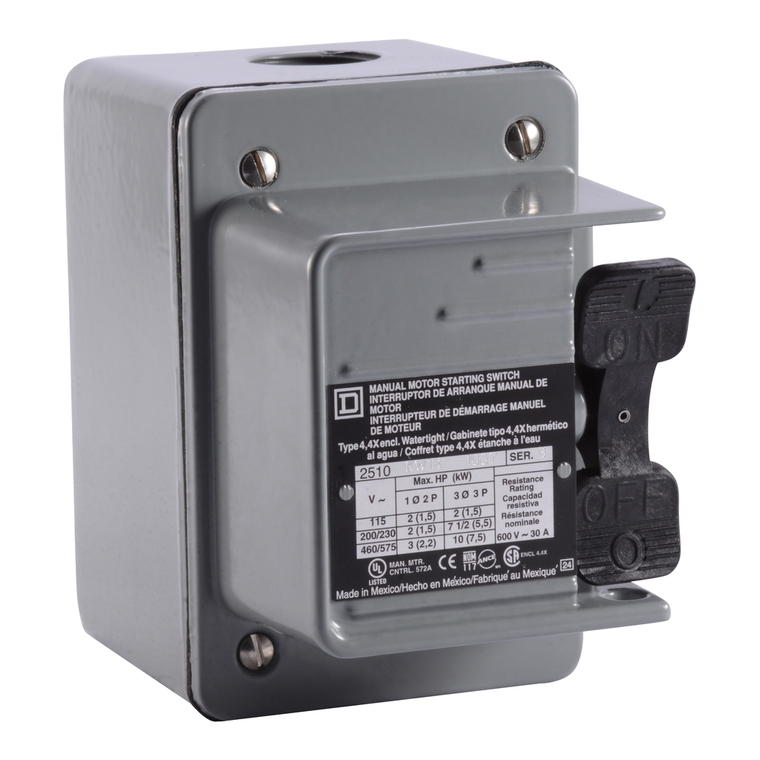

Schneider Electric 2510KW1H Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, red 115 VAC indicator, NEMA 4, two conduit
Schneider Electric
$348.97
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric 2510KW1H Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, red 115 VAC indicator, NEMA 4, two conduit
2510K manual motor switches are Intended for industrial, commercial and residential applications. These switches are for applications where overload protection is not required or is provided separately. Manual motor switches provide manual On Off control of small motors. Overload protection for the motor must be supplied separately. This nonreversing manual switch is toggle operated. The maximum operational voltage is 600 VAC and 250 VDC. This two pole switch is rated for 2 HP at 115VAC, 2 HP at 230VAC, 3 HP at 460VAC, 3 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 20A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This switch has no pilot light indicator. A NEMA 4 watertight and dusttight die cast zinc alloy enclosure is used to protect this manual motor switch. This enclosure has one conduit entry on the bottom and one on the top. The 0.75 inch conduit entries are tapped with number 14 pipe threads. This device is 4.38 inches tall, 3.00 inches wide and 4.25 inches deep. A toggle handle is used to turn the manual starter on and off. The toggle handle can be padlocked in the off position. This device is UL Listed and CSA certified.
- Maximum Horse Power Rating:
- 2 hp 115 V AC || 2 hp 230 V AC || 3 hp 460 V AC || 3 hp 575 V AC || 1 hp 90 V DC || 2 hp 115 V DC || 1.5 hp 230 V DC
- Local Signaling:
- no indicator
- Range Of Product:
- K
- Poles Description:
- 2P
- Product Certifications:
- UL listed file E42243 CCN NLRV || CSA LR25490 class 3211 05
- [Ue] Rated Operational Voltage:
- 600 V AC || 230 V DC
- Line Rated Current:
- 30 A
- Product Or Component Type:
- Single Unit Manual Switch
- Pvc Free:
- Yes
- Nema Degree Of Protection:
- NEMA 4 die cast zinc alloy standard size
- Electrical Connection:
- screw clamp terminals
- Motor Starter Type:
- non reversing
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Depth:
- 4.25 in
- Eu Rohs Directive:
- Not compliant
- Cable Entry:
- 0.75 NPT (top and bottom)
- Country of Origin:
- Mexico
- Awg Gauge:
- AWG 14...AWG 10 copper
- Phase:
- 1 phase
- Warranty:
- 18 months
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Control Type:
- toggle
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
