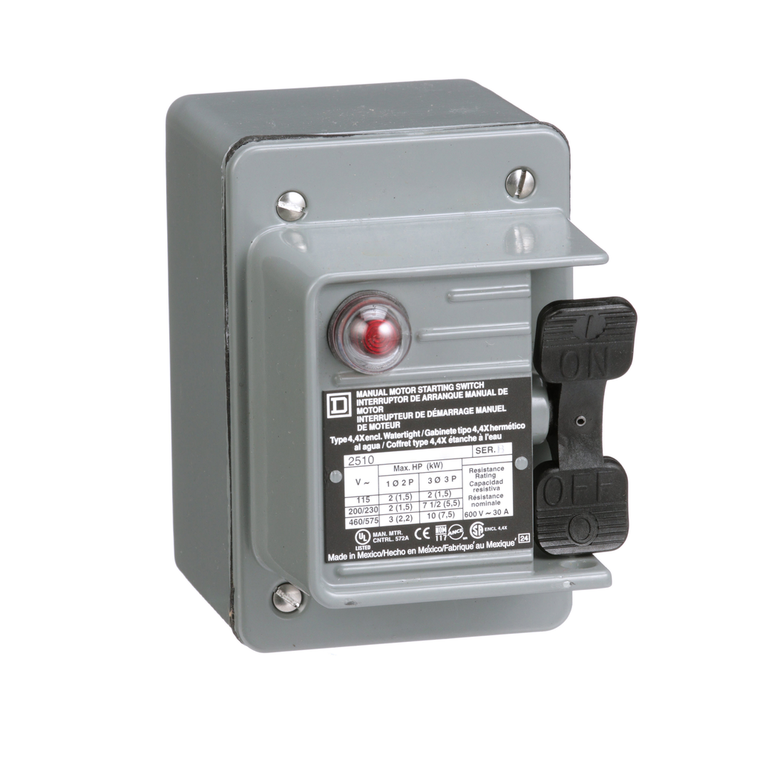

Schneider Electric 2510KW2CH Switch, manual, 30A, 3 pole, 10HP at 575VAC, 3 phase, toggle operated, red 440/600VAC indicator, NEMA 4 enclosure

(No reviews yet) Write a Review
SKU:
2510KW2CH
MPN:
2510KW2CH
Condition:
New
Line Rated Current:
30 A
Pvc Free:
Yes
Product Or Component Type:
Single Unit Manual Switch
Poles Description:
3P
Cable Entry:
0.75 NPT (top and bottom)
Country of Origin:
Mexico
Maximum Horse Power Rating:
2 hp 115 V AC || 1 hp 90 V DC || 2 hp 115 V DC || 1.5 hp 230 V DC || 7.5 hp 230 V AC || 10 hp 460 V AC || 10 hp 575 V AC
Awg Gauge:
AWG 14...AWG 10 copper
Depth:
4.56 in
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Nema Degree Of Protection:
NEMA 4 die cast zinc alloy standard size
Control Type:
toggle
[Ue] Rated Operational Voltage:
600 V AC || 230 V DC
Motor Starter Type:
non reversing
Local Signaling:
red indicator, 440...600 V
Warranty:
18 months
Electrical Connection:
screw clamp terminals
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive:
Not compliant
Product Certifications:
UL listed file E42243 CCN NLRV || CSA LR25490 class 3211 05
Phase:
3 phase
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Range Of Product:
K
$544.50

Description

2510K manual non-reversing motor switches are designed for manual On Off control for small motors. These non-reversing manual switches are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. This switch can also be used on non-motor loads such as resistance heaters. This three pole switch is rated for 2 HP at 115VAC, 7.5 HP at 230VAC, 10 HP at 460VAC, and 10 HP at 600VAC three phase. It is also rated for 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC motors. Overload protection for the motor must be supplied separately. 2510K switches can be ordered in a variety of enclosure types. This device is in a surface mount NEMA 4 watertight enclosure. This enclosure has one conduit entry on the bottom and one on the top. The 0.75 inch conduit entries are tapped with number 14 pipe threads. Enclosure is 4.38 inches tall, 3.00 inches wide and 4.56 inches deep. A toggle handle is used to turn the manual switch on and off. The toggle handle can be padlocked in the off position. This switch comes as standard with a 440 to 600 volt red pilot light. 2510K manual switches are UL listed and CSA certified. This device is UL Listed and CSA certified.
