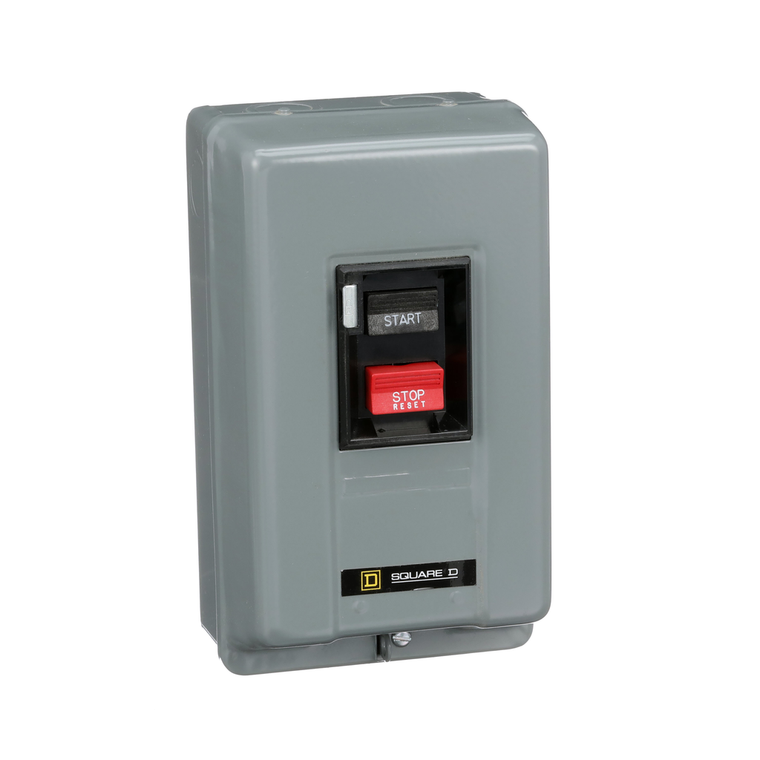

Schneider Electric 2510MBG1 Manual starter, integral horsepower, NEMA M0, 600VAC, 2 pole, 2HP at 230VAC, 1 phase, no indicator, NEMA 1

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric 2510MBG1 Manual starter, integral horsepower, NEMA M0, 600VAC, 2 pole, 2HP at 230VAC, 1 phase, no indicator, NEMA 1

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

2510MBG1

UPC:

MPN:

2510MBG1

Condition:

New

Rohs Exemption Information:

Yes

Electrical Connection:

pressure wire clamp

Range Of Product:

M

[Ue] Rated Operational Voltage:

600 V AC

Product Or Component Type:

Manual Starter

Motor Starter Type:

non reversing

Thermal Overload Type:

melting alloy

Nema Size:

M-0

Country of Origin:

Mexico

Auxiliary Contact Composition:

without

Local Signaling:

no indicator

Product Certifications:

CSA LR60905 class 3211 05 || UL listed file E42243 CCN NLRV

Depth:

4.13 in

Poles Description:

2P

Awg Gauge:

AWG 14...AWG 8 copper

Number Of Thermal Units Required:

1

Nema Degree Of Protection:

NEMA 1 painted sheet steel

Warranty:

18 months

Eu Rohs Directive:

Compliant with Exemptions

Control Type:

push-button

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Pvc Free:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Maximum Horse Power Rating:

1-1 hp 115 V AC, 1 phase || 2-2 hp 230 V AC, 1 phase

Mercury Free:

Yes
