Schneider Electric 2510MBR2 Manual starter, integral horsepower, NEMA M0, 600VAC, 3 pole, 5HP at 380/575VAC, 3 phase, no indicator, NEMA 7/9

Schneider Electric 2510MBR2 Manual starter, integral horsepower, NEMA M0, 600VAC, 3 pole, 5HP at 380/575VAC, 3 phase, no indicator, NEMA 7/9

Schneider Electric
SKU:
2510MBR2
$1,115.98
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

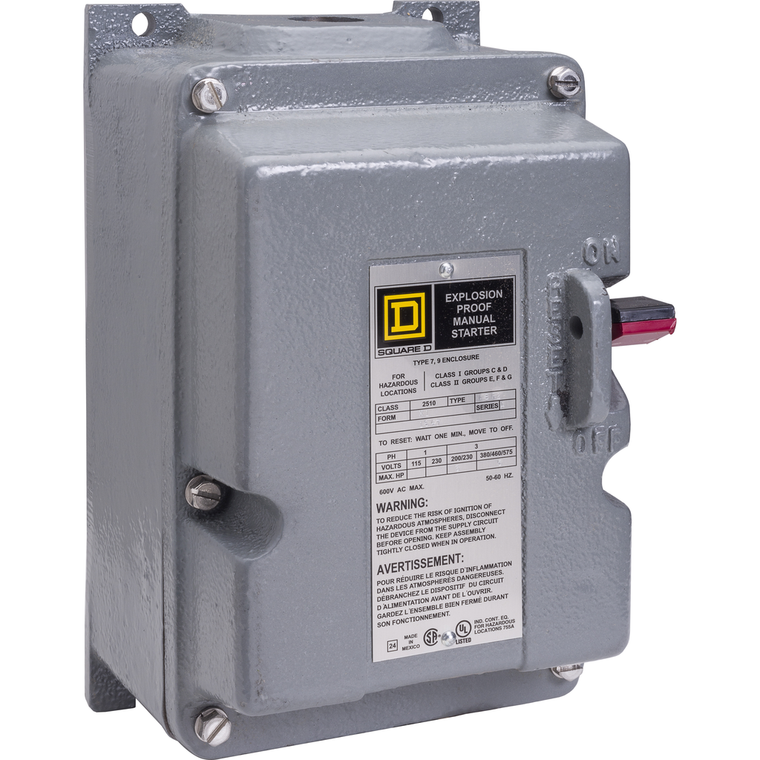

2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. This NEMA Size M-0 three pole starter is rated for 3 HP at 200-230 VAC and 5 HP at 380-575 VAC three phase. Three melting alloy thermal units are used with this manual starter to sense over current conditions. These thermal units are ordered separately to match motor data. A cast aluminum NEMA 7 and 9 hazardous location, Class 1, Groups C & D and Class II, Groups E, F, & G enclosure is used to protect this starter. This enclosure has one 0.75 inch conduit entry on the bottom and one on the top. Enclosure is 10.50 inches tall, 6.00 inches wide and 6.13 inches deep. A toggle handle is used to turn the manual switch on and off. The toggle handle can be padlocked in the off or stop position. 2510M integral horsepower starters are UL listed and CSA certified.
Additional Information
Auxiliary Contact Composition:
without
Awg Gauge:
AWG 14...AWG 8 copper
Poles Description:
3P
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Thermal Overload Type:
melting alloy
Nema Degree Of Protection:
NEMA 7/9 cast iron
Local Signaling:
no indicator
Rohs Exemption Information:
Yes
Control Type:
push-button
Motor Starter Type:
non reversing
Product Certifications:
CSA LR26817 class 3218 04 || UL listed file E58760 CCN NPXZ
[Ue] Rated Operational Voltage:
600 V AC
Number Of Thermal Units Required:
3
Range Of Product:
M
Pvc Free:
Yes
Country of Origin:
United States
Product Or Component Type:
Manual Starter
Nema Size:
M-0
Eu Rohs Directive:
Compliant with Exemptions
Maximum Horse Power Rating:
3-3 hp 200...230 V AC, 3 phase || 5-5 hp 380...575 V AC, 3 phase
Warranty:
18 months
Electrical Connection:
pressure wire clamp
Mercury Free:
Yes
Depth:
6.13 in
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
