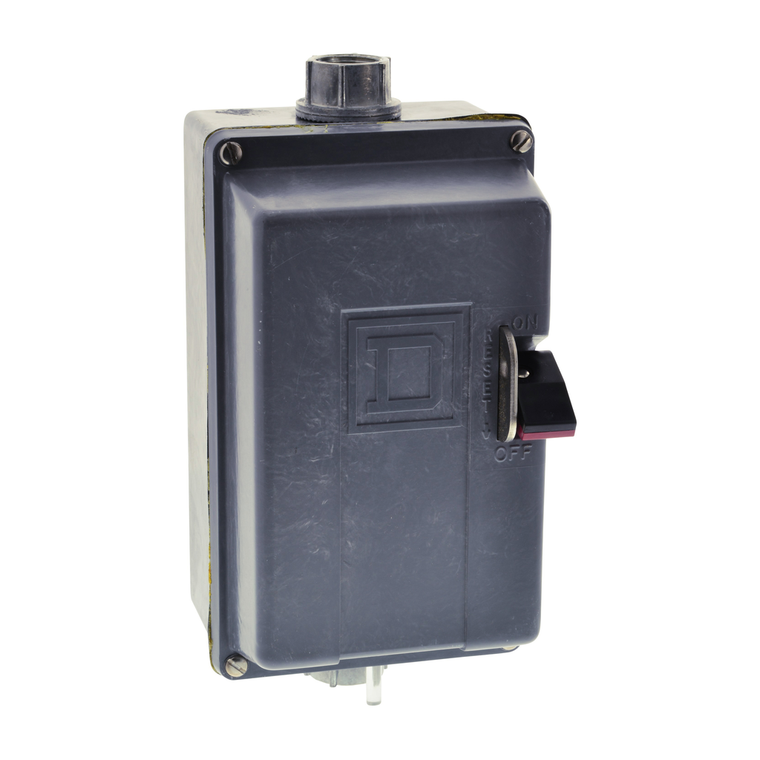

Schneider Electric 2510MCW1 Manual starter, integral horsepower, NEMA M1, 600VAC, 2 pole, 3HP at 230VAC, 1 phase, no indicator, NEMA 4/4X

Schneider Electric 2510MCW1 Manual starter, integral horsepower, NEMA M1, 600VAC, 2 pole, 3HP at 230VAC, 1 phase, no indicator, NEMA 4/4X

Schneider Electric
SKU:
2510MCW1
$936.26
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. Overload heater elements are ordered separately to match motor data. A melting alloy thermal unit is used with this manual starter to sense over current conditions. This thermal unit is ordered separately to match motor data. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. A NEMA 4/4X watertight, dusttight and corrosion resistant glass polyester enclosure is used to protect this integral horsepower manual starter. This enclosure has one 0.75 inch conduit entry on the bottom and one on the top. Enclosure is 12.13 inches tall, 6.50 inches wide and 6.41 inches deep. A toggle handle is used to turn the manual switch on and off. The toggle handle can be padlocked in the off or stop position. 2510M integral horsepower starters are UL listed and CSA certified.
Additional Information
Control Type:
push-button
Depth:
6.41 in
Mercury Free:
Yes
Eu Rohs Directive:
Compliant with Exemptions
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Rohs Exemption Information:
Yes
Awg Gauge:
AWG 14...AWG 8 copper
Maximum Horse Power Rating:
2-2 hp 115 V AC, 1 phase || 3-3 hp 230 V AC, 1 phase
Product Certifications:
CSA LR60905 class 3211 05 || UL listed file E42243 CCN NLRV
Country of Origin:
Mexico
Range Of Product:
M
Motor Starter Type:
non reversing
Pvc Free:
Yes
Nema Degree Of Protection:
NEMA 4/4X glass polyester
Product Or Component Type:
Manual Starter
Thermal Overload Type:
melting alloy
Local Signaling:
no indicator
Nema Size:
M-1
Poles Description:
2P
Electrical Connection:
pressure wire clamp
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Warranty:
18 months
Number Of Thermal Units Required:
1
[Ue] Rated Operational Voltage:
600 V AC
Auxiliary Contact Composition:
without
