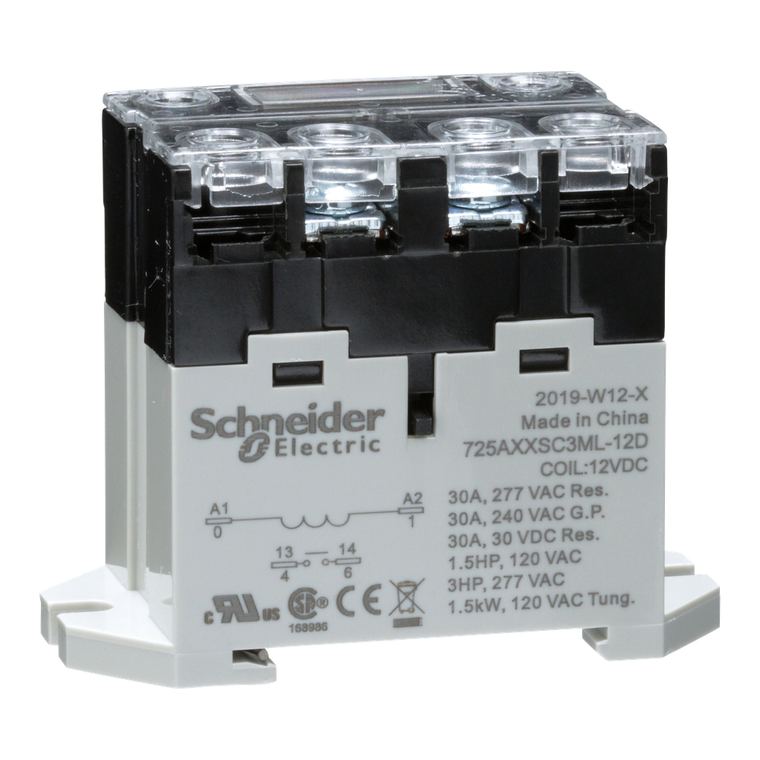

Schneider Electric 725AXXSC3ML-12D Power relay, SE Relays, 30A, 1NO, 12VDC, LED push button, screw terminals, DIN or panel mount
Schneider Electric
$8.15
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric 725AXXSC3ML-12D Power relay, SE Relays, 30A, 1NO, 12VDC, LED push button, screw terminals, DIN or panel mount
This 725 power relay belongs to the Schneider Electric Harmony electromechanical relays range. 725 power relay has a LED status indicator with screw terminals supporting DIN rail or Panel mounting. It’s a 30A 1 NO contact configuration mechanical relay with nominal coil voltage of 12Vdc and coil resistance of 75Ω. The touch-proof covers on screw terminals provides IP20 degree of protection. It has a side-mounted spring return pushbutton for testing the contacts. It weighs 0.120Kg. It is suitable for high-capacity switching applications such as EV charging, CNC machines, and HVAC compressors. Protection modules and spring clips are available. It is sold in lots of 10. The 725 relay range with high dielectric strength helps withstand severe voltage surges and spikes which provides protection for surrounding circuits.
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Wire Stripping Length:
- 8 mm
- Short-Circuit Current:
- 3 kA
- Standards:
- IEC 60947-1 || UL 60947-4-1A
- Range Of Product:
- Harmony Electromechanical Relays
- Mounting Support:
- DIN rail || flange
- Mechanical Durability:
- 5000000 cycles
- Ambient Air Temperature For Storage:
- -55-100°C
- Rated Power In W:
- 1.5 kW 120 V tungsten
- Control Type:
- test button
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Drop-Out Voltage Threshold:
- DC
- Average Coil Consumption:
- 1.90 W
- Ip Degree Of Protection:
- IP20
- Mercury Free:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Length:
- 8 mm
- Depth:
- 53.9 mm
- Weight:
- 120 g
- Catalog Class:
- 725
- [Ie] Rated Operational Current:
- 30 A at 277 V AC (on resistive load) conforming to UL || 30 A at 240 V AC (general purpose) conforming to UL || 30 A at 30 V DC (on resistive load) conforming to UL || 30 A at 240 V AC (on resistive load) conforming to IEC || 30 A at 28 V DC (on resi
- Local Signaling:
- LED indicator test button
- Network Frequency:
- 50/60 Hz
- Maximum Resistance:
- 75 Ohm
- Line Rated Current:
- 30 A
- Contacts Type And Composition:
- 1 NO
- Maximum Switching Voltage:
- 240 V CE || 277 V UL
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Or Component Type:
- DIN rail/panel mount relay
- China Rohs Regulation:
- X
- Average Impedance:
- 2 mOhm
- Contacts Material:
- silver alloy contacts
- Minimum Switching Current:
- 100 mA 5 V DC
- Rated Power In Hp:
- 3 hp 277 V AC || 1.5 hp 120 V AC
- Country of Origin:
- China
- Toxic Heavy Metal Free:
- Yes
- Input Voltage:
- 9.6...13.2 V DC
- Rohs Exemption Information:
- Yes
- Tightening Torque:
- 10.6...15 lb.in || 1.2...1.7 N.m
- Response Time:
- 30 ms
- Product Certifications:
- UL || CSA || CE
- Series Name:
- Power
- Associated Fuse Rating:
- 32 A gG at 400 V coordination type 2 for power circuit
- Reach Free Of Svhc:
- Yes
- Ambient Air Temperature For Operation:
- -20-55°C
- Net Weight:
- 120 g
