Schneider Electric

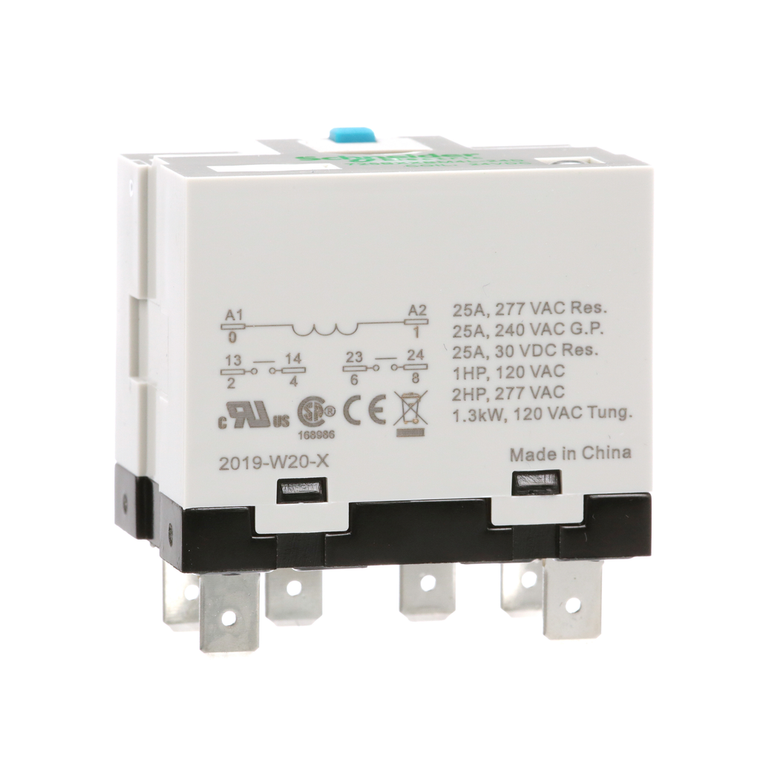

Schneider Electric 725BXXBM4L-24D Power relay, SE Relays, 25A, 2NO, 24VDC, LED, flag indicator, locking push button, blade terminal, plug-in socket mount

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric 725BXXBM4L-24D Power relay, SE Relays, 25A, 2NO, 24VDC, LED, flag indicator, locking push button, blade terminal, plug-in socket mount

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

725BXXBM4L-24D

UPC:

MPN:

725BXXBM4L-24D

Condition:

New

Control Type:

lockable test button

Short-Circuit Current:

3 kA

Rated Power In W:

1.3 kW 120 V tungsten

Contacts Type And Composition:

2 NO

Ambient Air Temperature For Storage:

-55-100°C

Product Certifications:

UL || CSA || CE

Country of Origin:

China

Local Signaling:

LED indicator || flag

Line Rated Current:

25 A

Depth:

53.05 mm

Reach Regulation:

Free of Substances of Very High Concern above the threshold

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Reach Free Of Svhc:

Yes

Standards:

IEC 60947-1 || UL 60947-4-1A

Net Weight:

120 g

Drop-Out Voltage Threshold:

DC

Range Of Product:

Harmony Electromechanical Relays

Series Name:

Power

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

[Ie] Rated Operational Current:

25 A at 277 V AC (on resistive load) conforming to UL || 25 A at 240 V AC (general purpose) conforming to UL || 25 A at 30 V DC (on resistive load) conforming to UL || 25 A at 240 V AC (on resistive load) conforming to IEC || 25 A at 28 V DC (on resi

Length:

8 mm

Mercury Free:

Yes

Average Coil Consumption:

1.90 W

Rohs Exemption Information:

Yes

Response Time:

30 ms

Weight:

120 g

Toxic Heavy Metal Free:

Yes

Minimum Switching Current:

100 mA 5 V DC

China Rohs Regulation:

X

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Maximum Resistance:

300 Ohm

Wire Stripping Length:

8 mm

Catalog Class:

725

Average Impedance:

2 mOhm

Rated Power In Hp:

1 hp 120 V AC || 2 hp 277 V AC

Associated Fuse Rating:

32 A gG at 400 V coordination type 2 for power circuit

Product Or Component Type:

plug-in relay

Contacts Material:

silver alloy contacts

Maximum Switching Voltage:

240 V CE || 277 V UL

Ambient Air Temperature For Operation:

-20-55°C

Mounting Support:

plug-in

Input Voltage:

19.2...26.4 V DC

Mechanical Durability:

5000000 cycles

Network Frequency:

50/60 Hz
