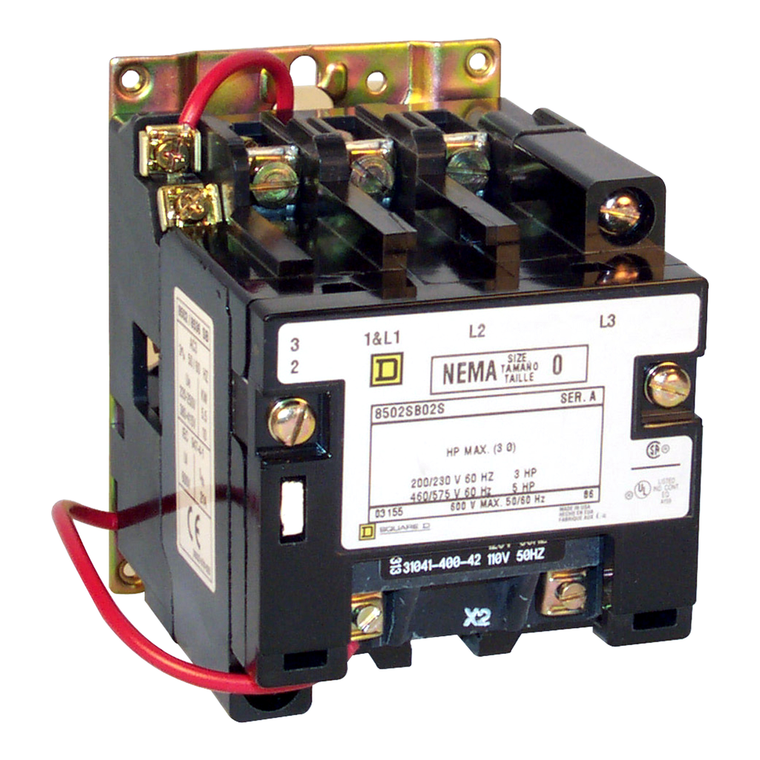

Schneider Electric 8502SBO2V08 NEMA Contactor, Type S, nonreversing, Size 0, 18A, 5HP at 575VAC, 3 phase, up to 100kA, 3 pole, 208VAC coil, open

(No reviews yet) Write a Review
SKU:
8502SBO2V08
MPN:
8502SBO2V08
Condition:
New
Poles Description:
3P
Line Rated Current:
18 A
Product Compatibility:
circuit-breaker 70 A maximum, SCCR: 100 kA at 480 V AC || fuse J 60 A maximum, SCCR: 100 kA at 600 V AC || fuse T 60 A maximum, SCCR: 100 kA at 600 V AC || fuse RK1 60 A maximum, SCCR: 100 kA at 600 V AC || fuse RK5 60 A maximum, SCCR: 100 kA at 600
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
[Uc] Control Circuit Voltage:
208 V AC 60 Hz
Nema Size:
0
Warranty:
18 months
Product Certifications:
UL listed file E78351 CCN NLDX || CSA
Control Circuit:
common control circuit
Provided Equipment:
fuse not supplied
Nema Degree Of Protection:
not rated (open device)
Rated Power In Hp:
3 HP 200 V AC || 3 HP 230 V AC || 5 HP 460 V AC || 5 HP 575 V AC
Local Signaling:
no indicator
Country of Origin:
Mexico
[Ue] Rated Operational Voltage:
600 V AC
Contactor Application:
non-reversing
Range Of Product:
8502S
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Electrical Connection:
screw clamp terminals
Control Type:
no control units
Auxiliary Contact Composition:
without
Depth:
107.19 mm
Eu Rohs Directive:
Not compliant
Product Or Component Type:
contactor
Phase:
3 phase
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
$414.00

Description

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 0 non-reversing contactor has an 18 ampere rating. Three phase NEMA Size 0 contactors have 3 HP at 200 and 230 VAC and 5 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 208 VAC 60 Hz coil that is wired for common control. This NEMA contactor is an open device without an enclosure. This contactor is 4.34 inches tall, 3.22 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
