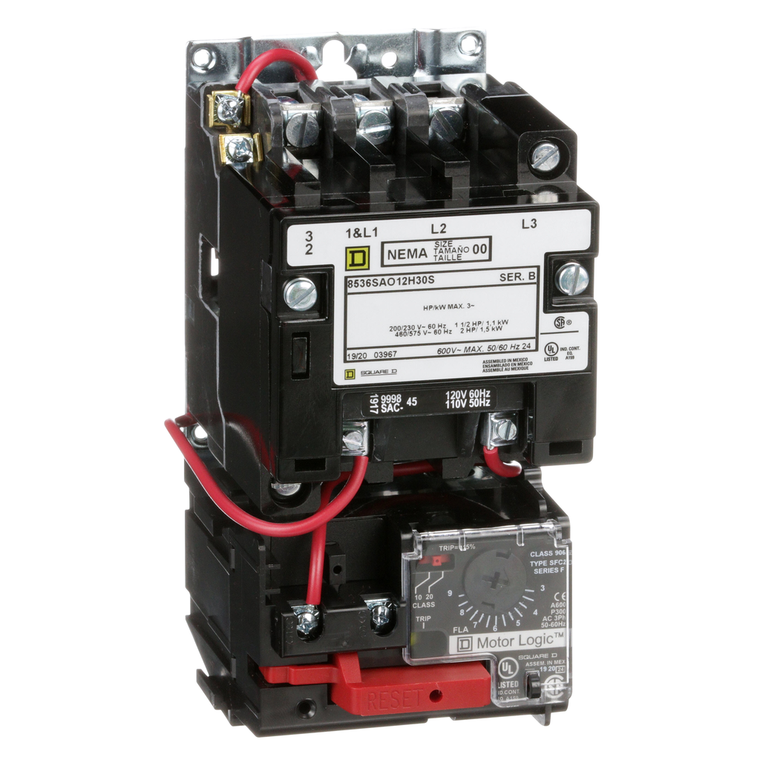

Schneider Electric 8536SAO12V02H30S NEMA motor starter, Type S, nonreversing, Size 00, 9A, 2HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 120VAC coil, open

(No reviews yet) Write a Review
SKU:
8536SAO12V02H30S
MPN:
8536SAO12V02H30S
Condition:
New
Phase:
3 phase
Line Rated Current:
0.375
Depth:
107 mm
Country of Origin:
Mexico
Product Certifications:
UL Listed || CSA || NEMA
Thermal Overload Type:
solid state Motor Logic class 10/20
[Ue] Rated Operational Voltage:
600 V AC
Product Or Component Type:
motor starter
Rated Power In Hp:
1.5 HP 200 V AC || 1.5 HP 230 V AC || 2 HP 460 V AC || 2 HP 575 V AC
Poles Description:
3P
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Control Circuit:
separate control circuit
Nema Size:
0
Pvc Free:
Yes
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Warranty:
18 months
Range Of Product:
S
Auxiliary Contact Composition:
without
Nema Degree Of Protection:
not rated (open device)
Control Type:
no control units
Motor Starter Type:
non reversing
Local Signaling:
without pilot light
[Uc] Control Circuit Voltage:
110 V AC 50 Hz || 120 V AC 60 Hz
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Electrical Connection:
screw clamp terminals
Eu Rohs Directive:
Not compliant
$479.00

Description

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 00 non-reversing starter has an 9 ampere rating. This NEMA Size 00 motor starter has 3 phase ratings of 1.5 HP at 220 and 230 VAC and 2 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 3A to 9A range to sense over current conditions. This NEMA starter has a 100 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
